MathMod — Flower
#3d #mathmod #mathematics #parametric
Published: 2015-10-01 01:30:05 +0000 UTC; Views: 247; Favourites: 0; Downloads: 2
Redirect to original
Description

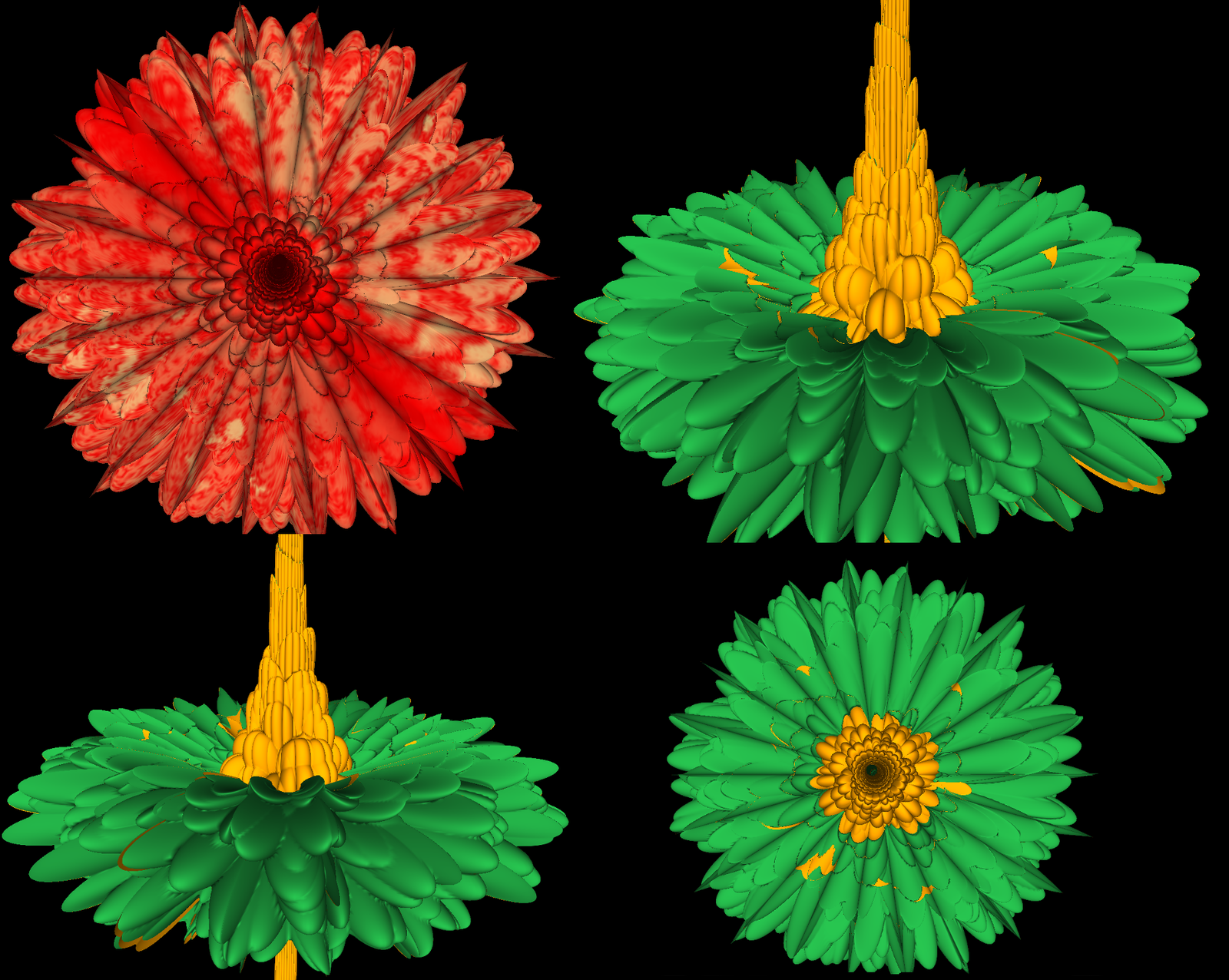

"Flower" is a parametric surface obtained by adding some noise effects to the "Breather" parametric surface.MathMod script:
{
"Param3D": {
"Description": ["Flower-1.0 by Abderrahman Taha 26/09/2015"],
"Name": ["Flower"],
"Component": ["BreatherNoise"],
"Fx": ["((2*sqrt(0.84)*cosh(0.4*u)*(-(sqrt(0.84)*cos(v)*cos(sqrt(0.84)*v))-sin(v)*sin(sqrt(0.84)*v)))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2)))*(1-NoiseW(((2*sqrt(0.84)*cosh(0.4*u)*(-(sqrt(0.84)*cos(v)*cos(sqrt(0.84)*v))-sin(v)*sin(sqrt(0.84)*v)))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),((2*sqrt(0.84)*cosh(0.4*u)*(-(sqrt(0.84)*sin(v)*cos(sqrt(0.84)*v))+cos(v)*sin(sqrt(0.84)*v)))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),(-u+(2*0.84*cosh(0.4*u)*sinh(0.4*u))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),1,2,0))"],
"Fy": ["((2*sqrt(0.84)*cosh(0.4*u)*(-(sqrt(0.84)*sin(v)*cos(sqrt(0.84)*v))+cos(v)*sin(sqrt(0.84)*v)))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2)))*(1 -NoiseW(((2*sqrt(0.84)*cosh(0.4*u)*(-(sqrt(0.84)*cos(v)*cos(sqrt(0.84)*v))-sin(v)*sin(sqrt(0.84)*v)))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),((2*sqrt(0.84)*cosh(0.4*u)*(-(sqrt(0.84)*sin(v)*cos(sqrt(0.84)*v))+cos(v)*sin(sqrt(0.84)*v)))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),(-u+(2*0.84*cosh(0.4*u)*sinh(0.4*u))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),1,2,0))"],
"Fz": ["(-u+(2*0.84*cosh(0.4*u)*sinh(0.4*u))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2)))*(1 - NoiseW(((2*sqrt(0.84)*cosh(0.4*u)*(-(sqrt(0.84)*cos(v)*cos(sqrt(0.84)*v))-sin(v)*sin(sqrt(0.84)*v)))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),((2*sqrt(0.84)*cosh(0.4*u)*(-(sqrt(0.84)*sin(v)*cos(sqrt(0.84)*v))+cos(v)*sin(sqrt(0.84)*v)))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),(-u+(2*0.84*cosh(0.4*u)*sinh(0.4*u))/(0.4*((sqrt(0.84)*cosh(0.4*u))^2+(0.4*sin(sqrt(0.84)*v))^2))),1,2,0))"],
"Umax": ["13.2"],
"Umin": ["-13.2"],
"Vmax": ["37.4"],
"Vmin": ["-37.4"]
}
}
