Description
www.steelseiko.com/pro…

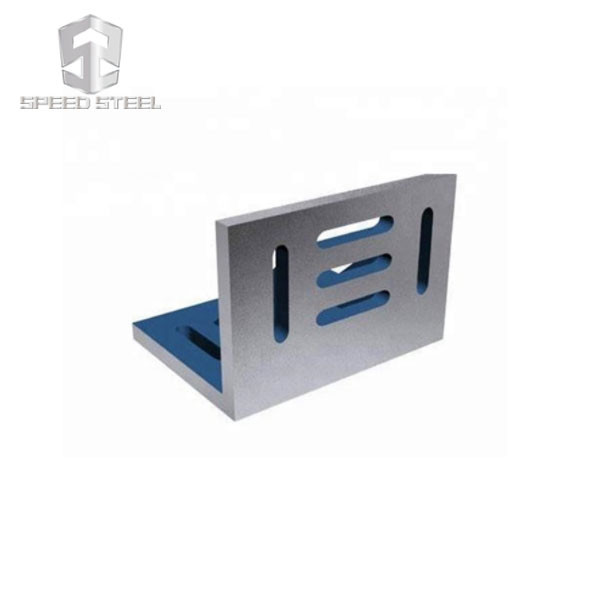

Cast iron bending plate is a verticality detection tool for machine tool machinery, high-precision machinery and large-scale instruments. At the same time, it can be used as a supporting workbench in processing. It is an indispensable vertical measuring tool for users in machine tool processing, machinery manufacturing, electronics and other industries.

Cast Iron Angle Plate Parameter
Product name
Cast Iron Angle Plate
Material
High strength gray cast iron HT200-300, QT400
Precision
Level 0, Level 1, Level 2, Level 3
Hardness
HB170-240
Specification
200mm×300mm-2000mm×4000mm (Bent plates of different specifications can be customized according to different needs of customers)
Surface technology
Scraping

Product Category of Cast Iron Angle Plate
Cast iron bending plate is divided into cast iron bending plate, right angle bending plate, T-slot bending plate, ordinary bending plate, splicing bending plate, granite bending plate, marble bending plate, granite bending plate, right angle leaning on iron, right angle leaning plate, right angle Ruler bending plate.

Application of Cast Iron Angle Plate
It is used for inspection of components and clamping in machining. It is used to inspect the 90° angle of the workpiece, to inspect the mutual perpendicularity of the relevant surfaces of the parts when the equipment is repaired, and it is also often used for the fitter to mark the line. It can be often used for inspection, installation, vertical inspection of machine tools, and can check the verticality of workpieces on cast iron plates. It is suitable for high-precision machinery and instrument inspection and inspection of non-perpendicularity between machine tools. The cast iron bending plate can be spliced and used by splicing two or three cast iron bending plates together, and the surface of the bending plate can be opened with a T-slot.
