xxhav0cxx — 6-In-1 Turbo-Scramjet Hybrid Engine
Published: 2012-07-08 18:14:28 +0000 UTC; Views: 4147; Favourites: 6; Downloads: 53
Redirect to original
Description

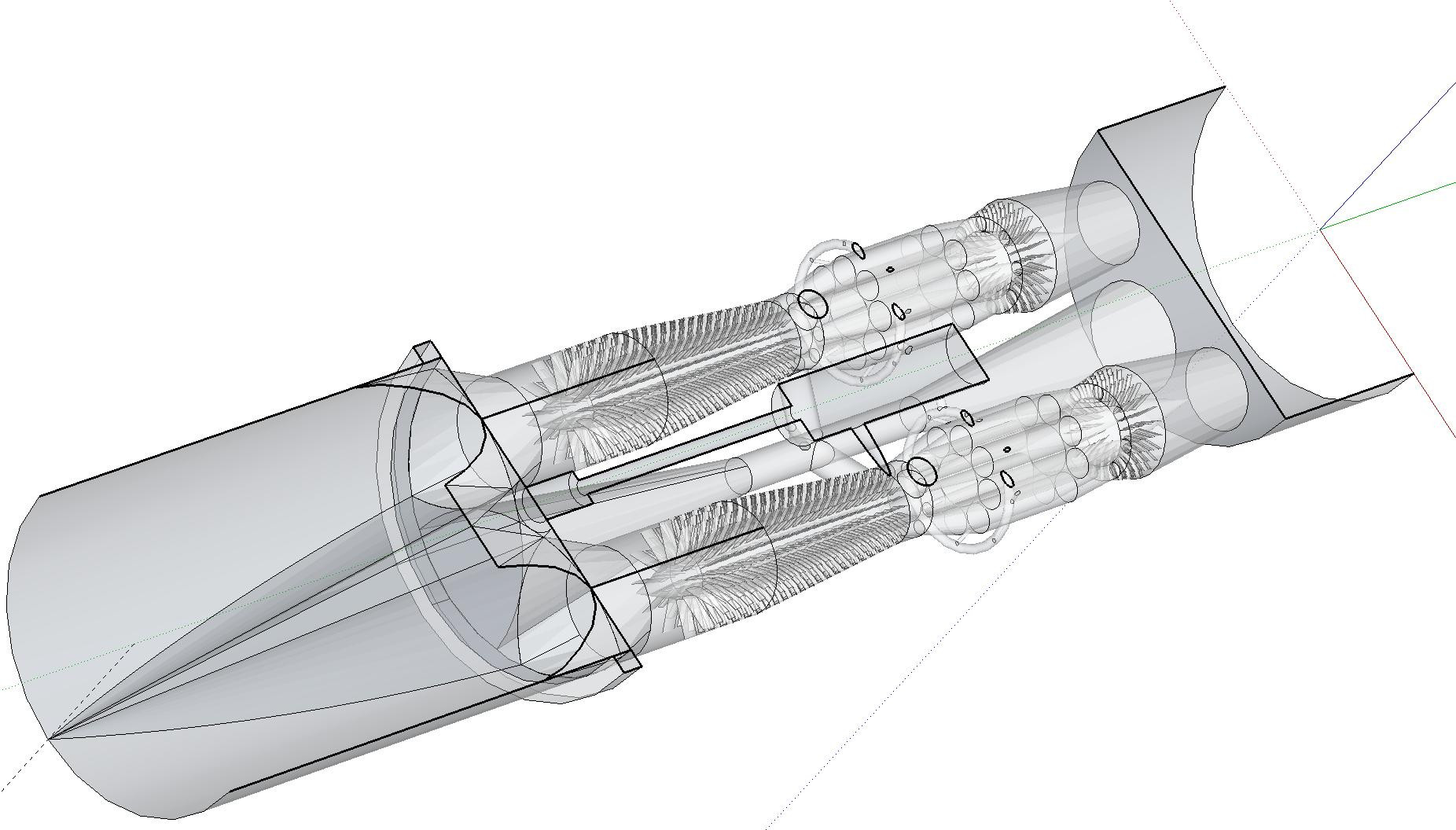

Design of an Hybird Engine in order to achieve All Flight Speed. The engine is designed to operate in Mach 0 to Hypersonic Speed. Three Traditional Turbojet Engines will operate in lower speed (Mach 0-4) and three Scramjet Engines will operate in hypersonic speed. To prevent the damage caused by high pressure and temperature while traveling in atmosphere to the Turbine Engines. Rotatable airflow selector in front of the 6 Engines blocks the airflow from going into the 3 Turbine Engines and redirects it to the Scramjet Engines during hypersonic flight.Related content
Comments: 3
The inlet constriction ratio on the scramjet seems high.
This thing is just begging for an inlet unstart.
Even if that could be solved turbine-ram/scram transition would be decidedly problematic.
Still a nice piece of art though.
👍: 0 ⏩: 0
Interesting, but you don't want to cut off the flow to the turbo-machinery completely. How else are you going to power the other systems, such as the fuel pumps.
