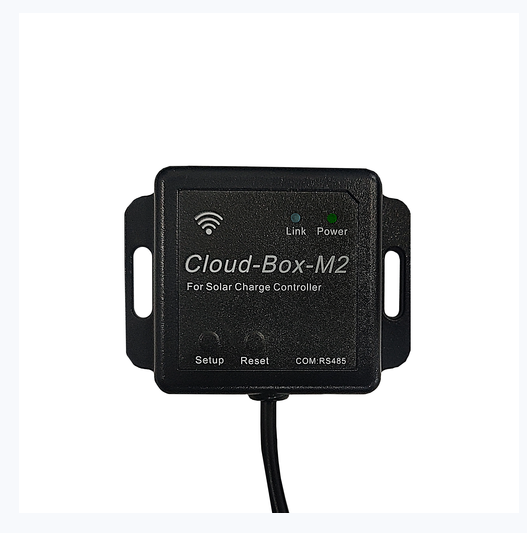

Ipandee — WIFI Module Cloud-Box-M2
#inverter #module #solar #wifi
Published: 2023-03-22 08:16:56 +0000 UTC; Views: 430; Favourites: 0; Downloads: 1
Redirect to original
Description
www.ipandee.com/products/wifi-…
It is suitable for the wifi module of our company's solar controller to extend the
remote data transmission function. The connected devices communicate and
collect data, and the devices can be wirelessly monitored at any time through
the cloud server or mobile APP.Control and parameter setting, etc., easy to
install and simple to set up.
Technical specifications of the WiFi module
Product number
Cloud-Box-M2
version
2.4G
Input voltage
4.5V-5.5V (maximum support 12V)
Standby power consumption
20mA
Running power consumption
40mA
Working current peak
260mA
working frequency
2.412GHz~2.484GHz
Serial port baud rate
Fixed baud rate 9600bps
communication method
RS485
Interface Type
RJ45
connecting line
Standard network cable (parallel cable)
size
66.5*51*15.5
Installation size
5.78*12mm
Mounting Aperture
φ3.5
Operating temperature
-40℃~75℃
Working humidity
10%~90% RH(Does not condense)
Protection class
IP 31
net weight
55g
