MathMod — Diamond Sphere
#3d #mathmod #mathematics
Published: 2015-12-08 15:30:35 +0000 UTC; Views: 209; Favourites: 1; Downloads: 0
Redirect to original
Description

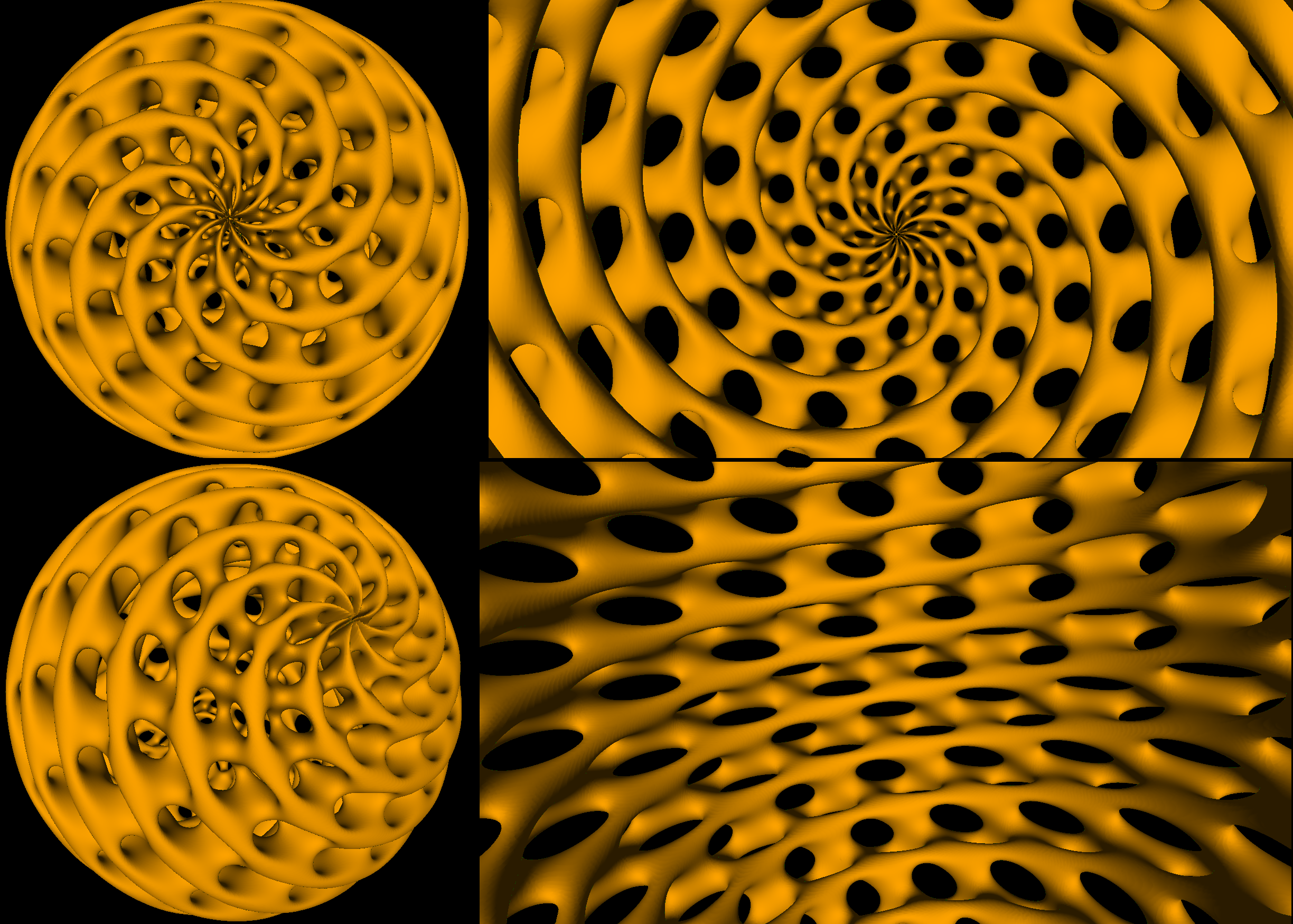

Diamond SphereHere I used a combination between a Tori and the Diamond minimal surface (also called Schwarz D )
MathMod script:
{
"Iso3D": {
"Description": ["Diamond Sphere-1.0 by Abderrahman Taha 07/12/2015"],
"Name": ["Diamond Sphere"],
"Component": ["Diamond Sphere"],
"Const": ["N=8",
"M=4"],
"Funct": ["Diamond =sin(x)*sin(y)*sin(z)+sin(x)*cos(y)*cos(z)+cos(x)*sin(y)*cos(z)+cos(x)*cos(y)*sin(z)",
"isoCondition_0= (x^2-2.2^2)",
"isoCondition_1= (x^2-2^2)",
"isoTransform=if(isoCondition_0(x,y,z,t)<0,Diamond(x,y,z,t),1)+M*exp(isoCondition_1(x,y,z,t))",
"isoTransform2=isoTransform((sqrt(x*x+y*y+z*z)-13),N*pi*atan2(y, sqrt(x*x+z*z)),N*atan2(z,x),t)"],
"Fxyz": ["-isoTransform2(x,y,z,t)"],
"Xmax": ["15"],
"Xmin": ["-15"],
"Ymax": ["15"],
"Ymin": ["-15"],
"Zmax": ["15"],
"Zmin": ["-15"]
}
}
