N647 β Ball bearing functional with blender file
Published: 2014-05-08 22:14:13 +0000 UTC; Views: 2938; Favourites: 5; Downloads: 0
Redirect to original
Description

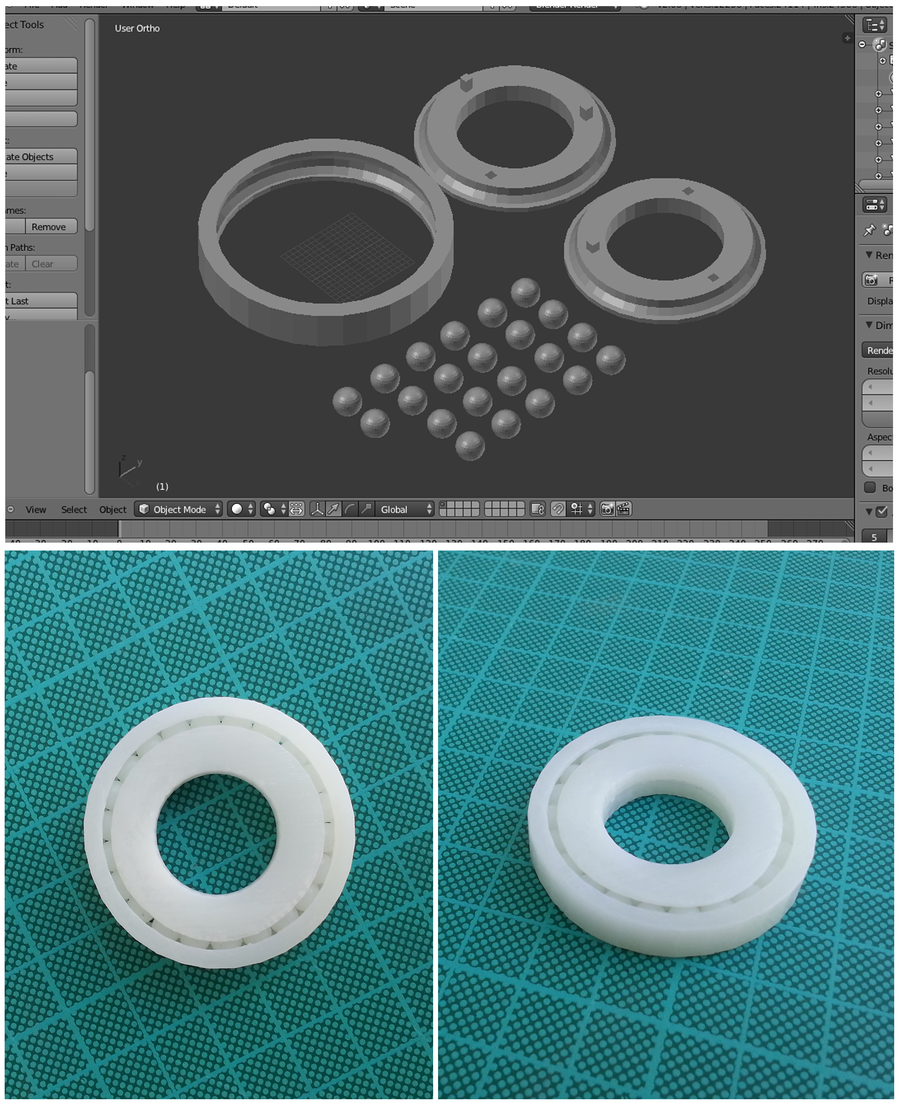

Modeled a little ball bearing in blender as a test, then made it on my 3D printer, was a nice exercise, and now I have a functional ball bearing XDRelated content
Comments: 18
clarification: a ball bearing is the little ball. This is a spin grommet.
π: 0 β©: 1
thanks for the correction had no idea, in Spanish is said rodamientos
π: 0 β©: 1
I know this is pretty late, but it actually is a ball bearing, as the device is a ball (supported) bearing. Β The balls are called bearing balls, because they bear the (radial, in this case) load. Β
Spin grommets would be something akin to what you find on office desks, with openings to allow cable routing.
π: 0 β©: 1
nothing worse than being wrong on the internet!
π: 0 β©: 0
thanks, is not that awesome actually, but is interesting as it show that you can do more than just figurines
π: 0 β©: 0
beside the support structure for printing? not really, I wont lie it did need some trimming to remove some imperfections at the contact points with the support but beside that, nothing
π: 0 β©: 0
Planning to do figurines in the near future (if all goes well a couple of months?), but the first stage is making more simple stuff for some specific niches, like industrial engineering architecture and fantasy/cosplay accessories.
π: 0 β©: 1
a Form1, is aΒ Β Stereolithography 3D printer, so the finish are of great quality
π: 0 β©: 0
So cool!
Oh the fun I could have with one of them (though I would likely just get lazy and not use it much >w<)
π: 0 β©: 1
Well is actually hard to come up with stuff to make really , harder that one may think XD
π: 0 β©: 1
Hehe well as long as you can model it, it can make it right?
π: 0 β©: 1
yes, sort of, there are size restrictions on the machine XD , and also you must think how is best to build it so it will print in as little time as possible and using as little material as possible too
