PanzerschreckLeopard — SD Class 2-10-0
Published: 2009-12-13 17:41:22 +0000 UTC; Views: 504; Favourites: 9; Downloads: 7
Redirect to original
Description

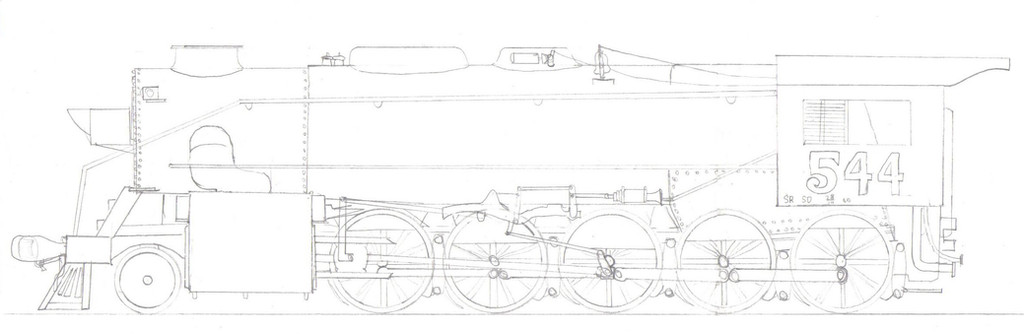

My design for a 2-10-0.SD is an acronym for "Standard Decapod."
Yeah, I numbered it after NCTM's Russian Decapod.
Here's the specifications... (Using short tons.)
Note: The tender is the same as that used on the Russian Decapods.
Tractive Effort: 70,805lb
Driving Wheels: 60".
Cylinders (2): 28 x 34".
Boiler Pressure: 250psi.
Locomotive Weight: 294,500lb (147.25t).
Adhesive Weight: 270,000lb (135t).
Valve Gear: Bakers, outside; left hand running.
Grate Area: 55sq ft.
Heating surface: 2,764sq ft.
Superheater: 640sq ft.
Tender Weight: 134,800lb (67.4t).
Fuel (Coal): 26,000lb (13t).
Water: 7,400 US gall.
Engine + Tender Weight: 429,300lb (214.65t).
Total Length: 82' 2".
