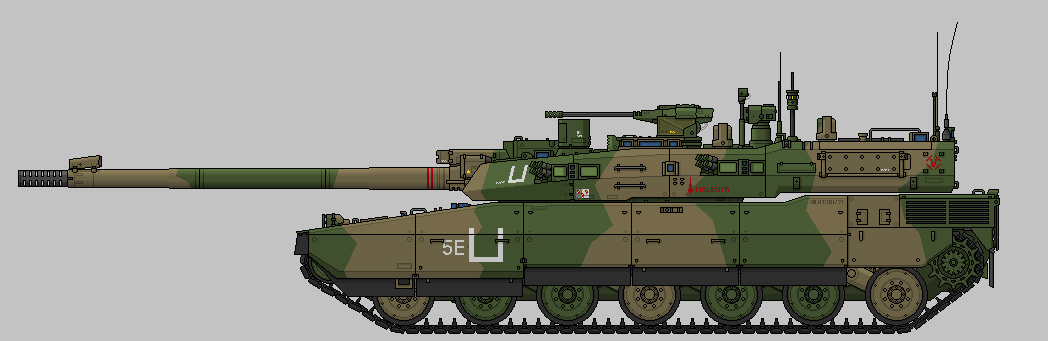

HT9A8 'Istrenyr' - First Standard (Block I) - Main Battle Tank
Designation:
Numerical Designation: HT9A8/IOCY
Name: "Istrenyr" - "Lancer Wyvern"
Key Data:
Crew: 3 (Commander, Gunner, Driver)
Designer: Fierei-Oblastinei IECpl
Cost: TBA
Dimensions:
Length:
- Hull: 8.1m
- Gun forwards: 11.3m
Height:
- Turret roof: 2.2m
- Incl. RWS: 2.7m
- Chassis: 1.6m
Width:
- Hull: 3.7m
- w/ SCSP skirts: 4.1m
Weight:
- Base combat: 66,500t
- w/ SCP applique: 73,800t
Propulsion:
Engine: MA.252/mod H2, 22L, electronically-controlled, liquid-cooled, hyperbar, 10 cylinder opposing piston EUI diesel engine
Power: 2,000hp (1,491kW, steady state)
Power/Weight ratio: 30.08hp/tonne
Transmission: FMA MHPT M.550 Semi-Automatic Transmission, epicyclic gearing, hydrokinetic torque conversion, 6 forward/2 reverse gears
Suspension: In-Arm Active Controlled Hydropneumatic
Wheels: 7 road wheels, rear drive (12-tooth sprocket), front idler with 6 return rollers
Performance:
Speed:
- Road: 74kph road speed (electronically governed)
- Reverse (road): 38kph
- Cross-country: 52kph
Operational Range: 490km (internal fuel, road)
Acceleration: 0 to 32kph in 4.8 seconds
Armament:
Main Armament: 128mm SC12.4 55 calibre solid propellant smoothbore cannon, fitted with thermal sleeve and automatic compressed air fume extractor
- Ammunition: 42 rounds, 30 in two-bloc reloadable autoloader magazine (APFSDS/HEDP-MF/GLATGM/MRKE mix)
- Elevation: -9/+15 deg
- Elevation rate: 30 deg/sec
- Traverse: 360 deg
- Traverse rate: 45 deg/sec
Coaxial station (left): 12.7mm MG/H8A3 heavy machinegun (can be replaced by modular block compatible weapons)
- Ammunition: 2000 rounds (12.7x99mm, HEIAP/HEIAP-T mix)
Commander's weapon: 20mm M.30 Automatic Cannon on Powered Remote Weapons System (interchangeable with compatible armaments)
- Ammunition: 1000 rounds (20x120mm CTA, APFSDS-T)
- Elevation: -15/+60 deg
- Elevation rate: 40 deg/sec
- Traverse: 300 deg
- Traverse rate: 60 deg/sec
Additional: Mounting point for 1x commander-operated ultralight UAV
Fire Control: Aoede Digital Fire Control System
Protection:
Armour: Mordens-3 Passive Protection Suite (Standard Combat Protection layout)
- Base: Multiple layer composite (multiple alloy-ceramic), IRHA/Type 7720 Ti-Al alloy base
- Forward Applique: Composite-tiles backed modular EERA array, TiB2/Ti-6Al-4V cover fronting
- Side Applique: 5-section IRHA skirts with mounted composite-tiles backed NERA
- Additional Armour: Top-mounted NERA and distruptive plating, further protection can be added as necessary
Passive Protection Systems: Castel Passive Protection Component
- Sensors: 4 module full-coverage coarse/fine laser detection/missile warning suite, five-unit distributed full-coverage thermal imaging system, secondary coarse thermal signature warning system, 8-faced distributed phased-array pulse doppler radar, acoustic detection sensor, cateye sensor
Active Protection Systems: Castel Active Protection Component
- Soft-kill: 2x E/MY.23 'Astal' Electro-Optical Interference Emitters (one unit on either side of turret), 2x E/MY.303 Independent Infra-Red Jamming units (on topside of turret, fully traversible)
- Hard-kill: 4x aimable MEFP launcher modules, 2x guided KE interceptor arrays (one unit on either side of turret)
NBC: Collective and overpressure protection, compartmentalised auxiliary systems, full vehicular climate control, mast-mounted environmental detector (biological/chemical agents and gamma radiation), EMP hardening
Fire: Pentafluoroethane, automatic (crew compartment), Halon 1301 extinguishing/foam fuel tank self-sealing suite (engine block)
Smoke: 2x 8-barrel, 2x 4-barrel 3-in (76mm) multiple role dischargers, one of each on each turret side, variable autocue, diesel injection into engine exhausts
Sensors:
Primary Gunnery Sight: Eletyr MYR-34 full-stabilisation gunnery sighting suite (Daytime Optical Channel (3x, 10x, 20x three-step optical magnification), 3CCD video daytime channel (default magnification of 3x and 10x with digital magnification up to 20x), 3rd generation staring FLIR (3x, 7.5x (WFOV) 15x, 25x, 50x (NFOV) five-step magnification)
- Laser rangefinder: Eye-safe pulsed CO2 laser
- Gunnery aids: Stabilised doppler LADAR, roof-mounted crosswind sensor, integral muzzle reference sensor
Commander's Independent Sight: Eletyr MYS-404 full-stabilisation independent sighting unit (Daytime Optical Channel (3x, 10x, 20x three-step optical magnification), 3rd generation staring FLIR (3x, 7.5x (WFOV), 15x, 25x (NFOV) four-step magnification)
- PWRS sensors: Daytime 3CCD Video Channel (3x, 10x magnification with digital magnification up to 25x, 2nd generation staring FLIR (3x, 10x, 15x three-step optical magnification with digital magnification up to 30x), eye-safe Nd:YAG laser rangefinder
Elevated Optronics Mast: Eletyr MYR-31 full-stabilisation 3rd generation staring FLIR (3x, 7.5x (WFOV) 15x, 25x, 50x (NFOV) five-step magnification)
Additional sensors/sights:
- Gunner: Auxiliary 8x telescope
- Commander: 5-unit distributed 3CCD vehicular periphery viewing array
- Driver: Observation block (three-block observation periscope to left, centre and right, passive IR-sight, 3CCD camera visuals at fore and aft)
Communications/Networking:
Communications Management: SAIC Combat Networking Suite
Radio: CAGRE (Common Air-Ground Radio Environment) architecture multi-mode VHF/FM (30-150 MHz) radio, CAGRE compliant multi-mode ALE/ALE(3G) HF (1600-29999 kHz) command radio
Networking: Multi-mode UHF IPv4 compliant high capacity data radio, IEEE 802.11 standard ad-hoc E-WLAN, digital broadband connection capability
Battle Management: CombatNet Tactical Battle Networking Framework (WarNet integrated), IEEE L-Band IFF transponder, GPS receiver, IVIS datalink, POS/NAV capability
Protection: Proprietary compression/encryption, dynamic malware protection, EMP hardening (boron carbide shielding, computer hardening (SRAM, depleted boron-coated chip arrays, partial redundancy, error-correcting memory)
