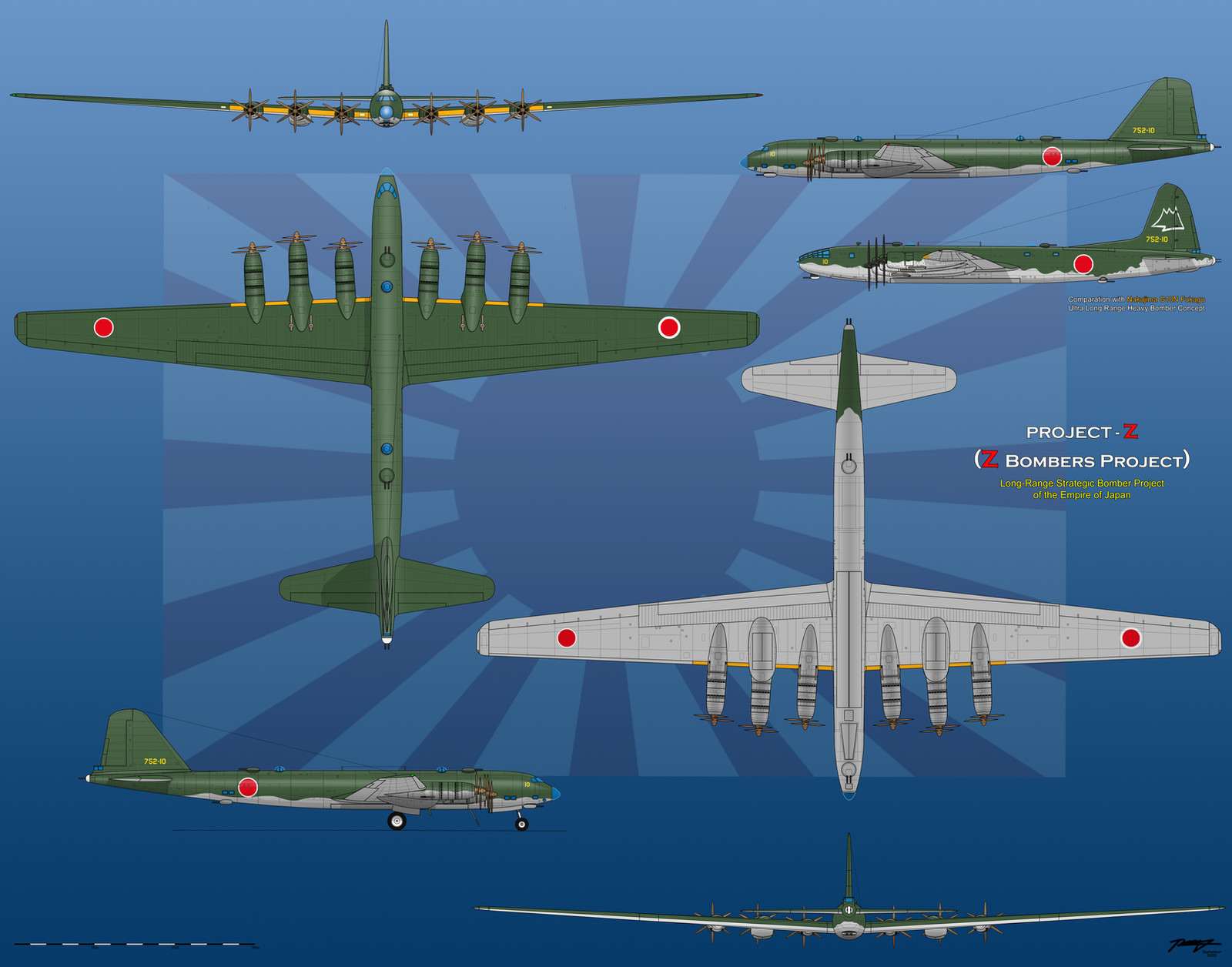

An Artist Concept of 6 view profile technical drawing, of a planned Japanese Long-Range Strategic Bomber.
Yes it's way different from Fukagu, but this was an initial concept design of the Z-Bomber, converted it into a set of schematics drawings.

The Project Z (also called the "Z Bombers Project") was a military project of the Empire of Japan, similar to the Nazi German Amerikabomber project, to design an intercontinental bomber capable of reaching North America.

Project Z was to have six 5,000 hp (3,700 kW) engines; the Nakajima Aircraft Company quickly began developing engines proposing twinned Nakajima Ha-44 engines (the most powerful engine available in Japan).

Designs were presented to the Imperial Japanese Army, including the Nakajima G10N, Kawasaki Ki-91, and Nakajima G5N. None, save for the G5N, developed beyond prototypes or wind tunnel models. Late in the war, Project Z and other heavy bomber projects were cancelled.

General characteristics
Crew: 6 to 10
Length: 44.98 m (147 ft 7 in)
Wingspan: 64.98 m (213 ft 2 in)
Height: 8.77 m (28 ft 9 in)
Wing area: 352.01 m2 (3,789.0 sq ft)
Aspect ratio: 12.1
Empty weight: 65,000 kg (143,300 lb)
Gross weight: 122,000 kg (268,964 lb)
Max takeoff weight: 160,000 kg (352,740 lb)
Powerplant: 6 × Nakajima Ha-54 36-cyl. air-cooled radial piston engines, 3,700 kW (5,000 hp) each at take-off
Propellers: 6-bladed contra-rotating constant speed propellers, 4.5 m (14 ft 9 in) diameter

Performance

Maximum speed: 679 km/h (422 mph, 367 kn) at 10,000 m (32,808 ft)
Range: 17,999 km (11,184 mi, 9,719 nmi) maximum
Service ceiling: 15,000 m (49,000 ft)
Wing loading: 456.99 kg/m2 (93.60 lb/sq ft)
Power/mass: 0.103 kW/kg (0.063 hp/lb)

Armament
Guns: 6 × 20mm Type 99 cannon
Bombs: 20,000 kg (44,092 lb) of bombs
