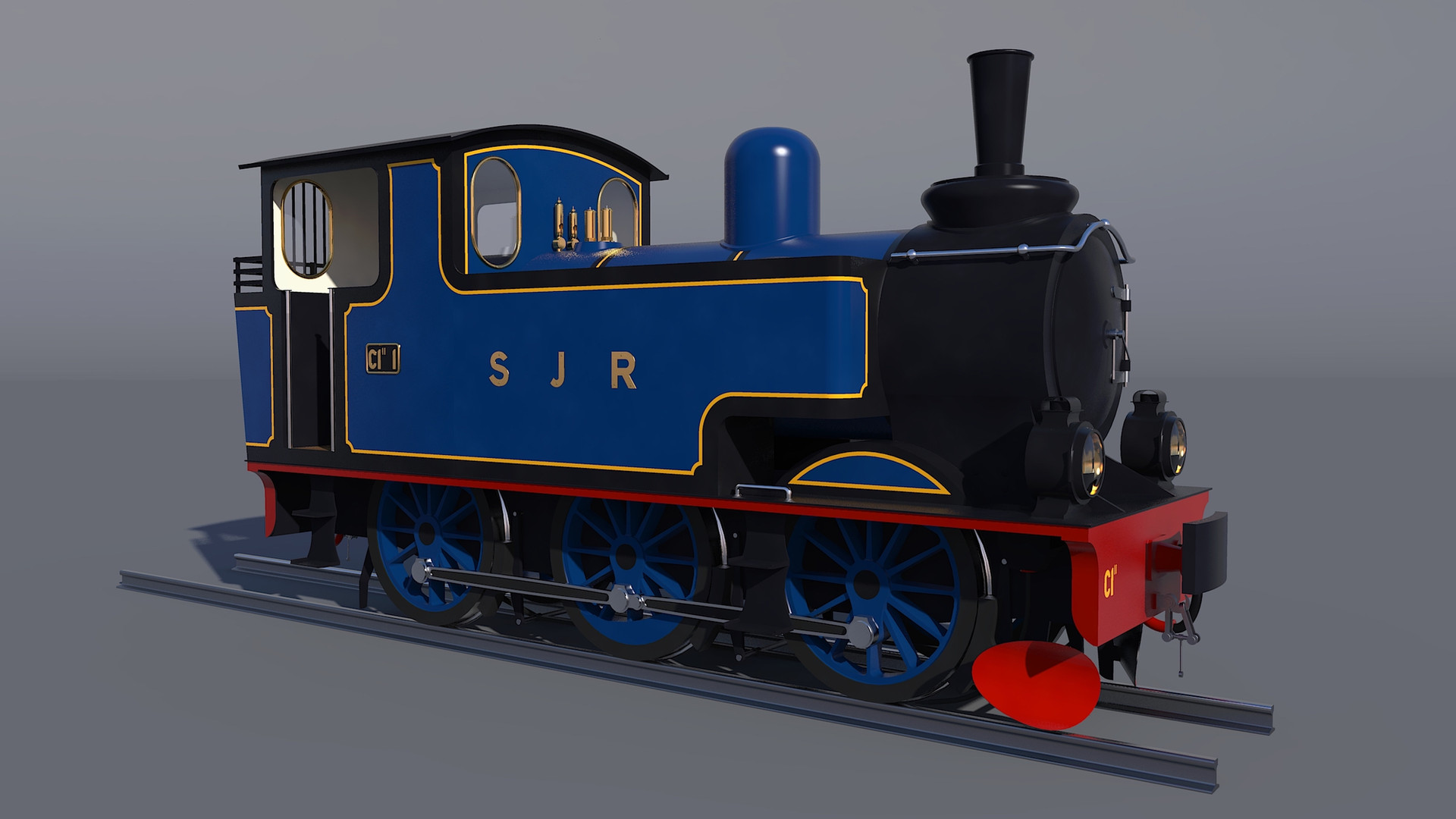

DimensionsUIC: C h2P
Length of Buffers: 6 490 mm
Width: 2 110 mm
Height: 3 300 mm
Wheelbase: 3 250 mm
Gauge: 1 000 mm
Driving wheel Ø: 1 200 mm
Cylinders Ø: 380 mm
Stroke: 420 mm
Boiler
Working pressure: 12 Bar
Indicative coefficient: 0,83
Boiler Ø: 1 150 mm
Barrel length: 1 965 mm
Grate area: 0,749 m²
Evaporative surface: 48,8 m²
Superheater surface: 17,1 m²
Steam output: 2 440 kg/h
Coal: 390 kg/h
Speed and Power
Starting tractive effort: 50,3 kN
SJR power classification: E
Top speed: 95 km/h
Service speed: 55 km/h
Maximum Effect: 271 kW
Max load 0,0˚ incline: 1 430 ton
Max load 1,0˚ incline: 370 ton
Tractive effort 45 km/h: 21,7 kN
Max load 0,0˚ incline: 620 ton
Max load 1,0˚ incline: 160 ton
Subtract 20,5 for possible train weight
Fuel
Coal cap: 0,84 m³ = 400 kg
Water cap: 2,8 m³
Weight
6 836 kg/driving axle
Service weight: 20 508 kg
