Description

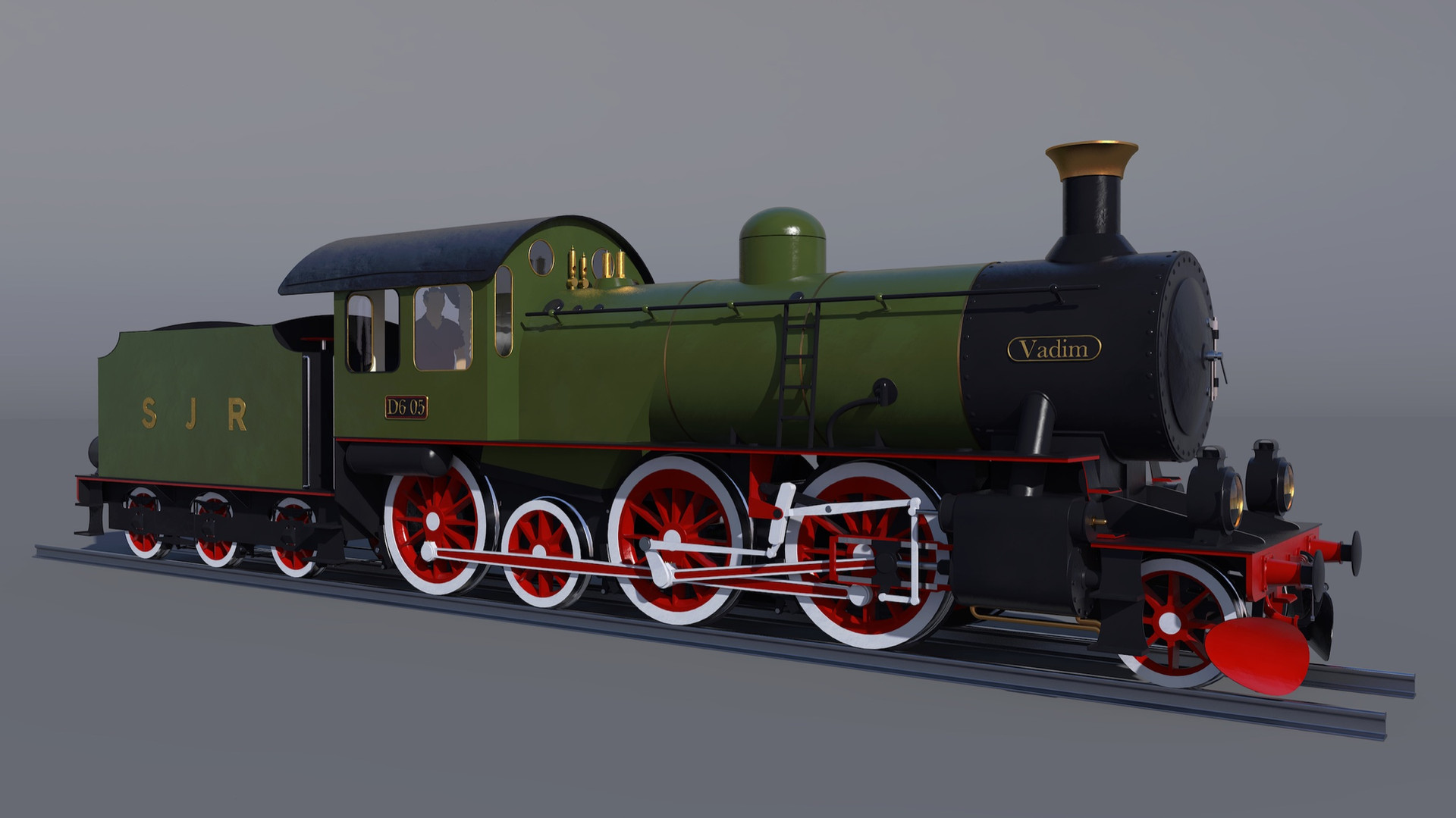

This engine was made as a birthday present for my dear friend www.deviantart.com/keisser . I took considerable inspiration from his engine The Belomorets And shrunk it slightly to fit within the loading gauge of the SJR. Godspeed mate!

Dimensions
UIC: 1’C1A h2
Vadskar: II.1’-2r-1-1r-0.2h
Class: D6
Date of construction:
Length over Buffers: 11 960 mm
Width: 2 080 mm
Height: 3 190 mm
Wheelbase: 5 935 mm
Rigid wheelbase: 4 390 mm
Leading wheels Ø: 720 mm
Driving wheels Ø: 1 200 mm
Running wheels Ø: 820 mm
Cylinders Ø: 310 mm
Stroke: 600 mm
Gauge: 1 069 mm

Boiler
Boiler class: uIII20
Boiler Ø: 1 167 mm
Barrel length: 2 600 mm
Working pressure: 12 Bar
Grate area: 1,13 m²
Evaporative surface: 39,6 m²
Superheater surface: 16,9 m²
Tubes: 100 x 50 mm
Flues: 14 x 100 mm
Steam output: 1 980 kg/h
Coal: 570 kg/h

Speed and Power
Tractive effort: 41,5 kN
Top speed: 55 km/h
Service speed: 35 km/h
Network speed: 32 km/h
Effect 20,4 km/h: 235 kW
Can pull a 240 ton up a 1,0% incline at a constant speed of 20,4 km/h

Weight
Adhesive weight: 16 920 kg
Engine weight: 18 720 kg
Service weight: 23 400 kg

Tender
Wet weight: 9 770 kg
Dry weight: 2 810 kg
Coal cap: 2,95 m³ = 2 510 kg
Water cap: 4,45 m³
Wheel Ø: 720 mm
Rigid wheelbase: 2 380 mm
