Description

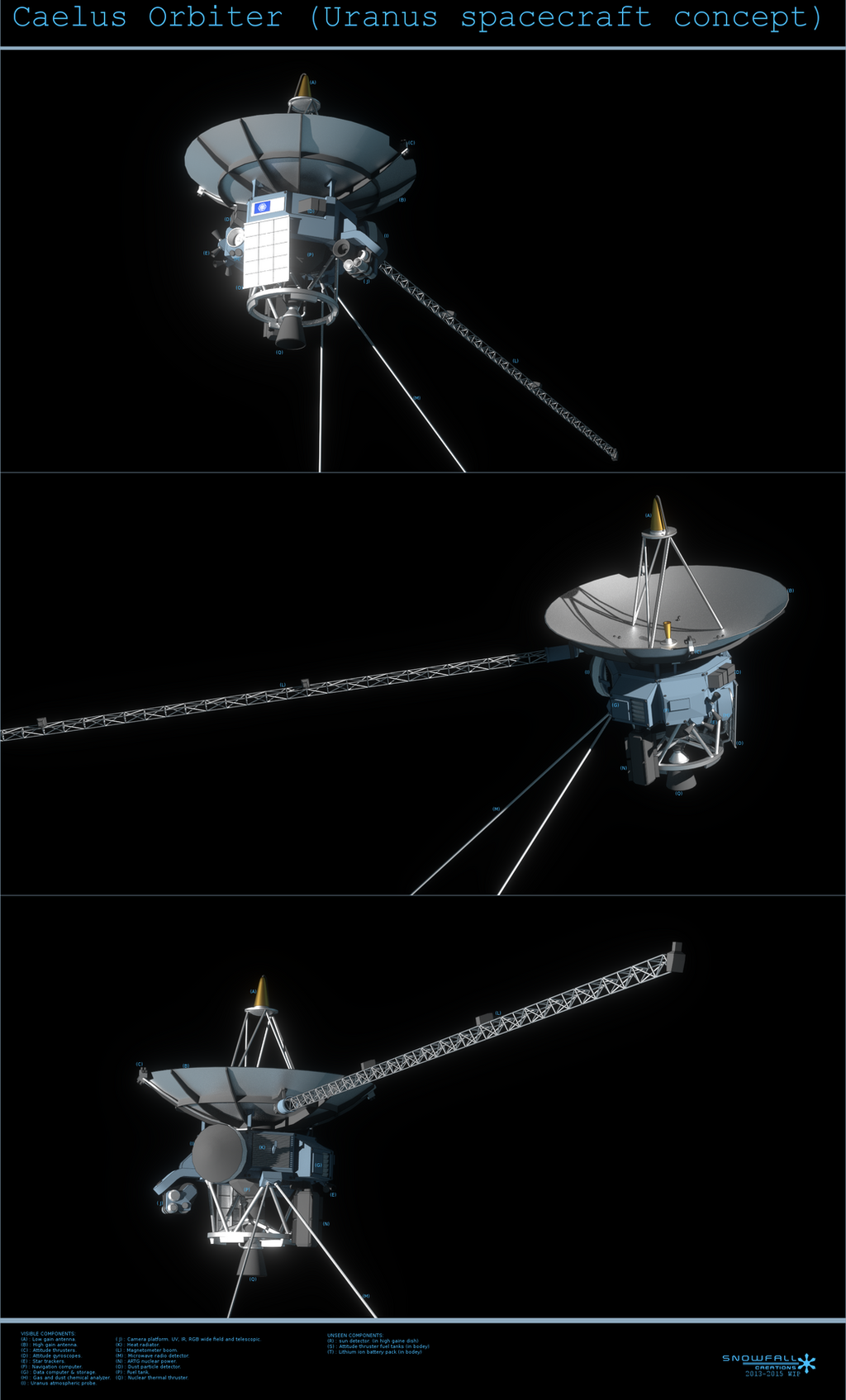

Now interactive in 3D! sketchfab.com/models/e12b0def1β¦
you can also download the models here: sta.sh/0rx12li10gp
All my life i have dreamed about sending a spacecraft to the 7th planet, unfortunate for its name, Uranus is very commonly skipped and ignored. I guess for this reason i have always wanted to understand and see the true beauty of this planet that people look over so easily, and the fact that we know so absolutely little about it make it my dream to explore.
after seeing all the incredible science and discoveries Cassini made at Saturn, who knows what kinds of amazing things we could find at bizarre Uranus and its moon system in that same resolution and detail.
just imagine!
#############################################
Mission goals:
-Characterize the internal structure of Uranus and how its magnetic field is generated and why it is off center.
-A general understanding of how ice Giant planets work.
-Understand how Uranus formed and why it is sideways.
-Map in detaile the complex cloud structures of Uranus in IR and how they change over time.
-Understand the influence of Uranus in the formation of the solar system.
-fully map the unseen hemispheres of the moons of Uranus in high resolution.
-Characterize the material in the rings and understand their origins.
-Photograph the shape and surfaces of the smaller moons of Uranus.
-Discover any unseen rings and moons in the Uranus system.
-understand the chemical composition of the clouds and atmosphere of Uranus at various depths.
-understand the winds and circulation patterns in Uranus's atmosphere.
-Search for any possible evidence of subsurface oceans inside any of the moons.
-understand the formation and structure of Miranda and any possible past tectonic activity or cryovolcanoes.
.. did i miss any?
#############################################
related to this drawing. fav.me/d80z1x0
And here is a cool picture i found of what its trajectory path to Uranus might look like by fav.me/d91q1ln
Did you notice i used the new International Flag of the Planet Earth? ^^ I hate single country patriotic flags. sorry, they are annoying as hell to me as they are just a symbol of ego in my eyes, they forget how small the earth really is and how pointless a single country is deep in space.
#############################################
This model has been sitting on my computer for a long time. i figured i should give it a little paint and cleaning and show it. even if i do end up doing more with it in the future. also, I am not a planetary scientist, so I am not sure 100% what instruments would be scientifically valuable to take to Uranus.
I have made many versions of this moddle over the long years time. It used to be named Hershel named after the discoverer of Uranus. It was perfect, because the spacecraft that explored Jupiter was named Galileo after the guy who observed Jupiter, same with Cassini Saturn, so Hershel sounded like the next name for the next planet. Though unfortunately the name Hershel was used for a space telescope that only lasted 4 years. So I guess I can't name this craft that..
Made in Blender 3D Cycles, freestyle, edited in GIMP.
