Do-Mo β A universal lander - Ramus #1
#3d #3ds #chemical #future #lander #mini #model #orbiter #realistic #rocket #shuttle #small #space #spaceship #support #venus #rocketpunk
Published: 2019-08-11 18:31:32 +0000 UTC; Views: 3365; Favourites: 97; Downloads: 42
Redirect to original
Description
AKA Venerian orbiter redone...again...
Other image: Link
Old version: Link 1 , Link 2 , Link 3
Length: 42,5m
Height: 5,5m
Width: 41m
Dry mass: 50 tons
Full load: 535 tons
Crew: 3
Main engine: 2x Methane - Oxygen chemical rockets
Thrust: 10 MN
Fuel: Liquid Methane - LOX
Fuel supply: 480 tons
Mass flow:Β 2702 kg/s
Clean acceleration: 18,69 m/s
Clean Delta-v: 8,417 km/s
125t acceleration: 15,15 m/s
125t Delta-v: 4,807 km/s
250t acceleration: 12,74 m/s
250t Delta-v: 3,353 km/s
With Booster:
Thrust: 14,5 MN
Fuel: Liquid Methane - LOX
Fuel supply: 580 tons
Mass flow:Β 3918 kg/s
Clean acceleration: 22,66 m/s
Clean Delta-v: 8,758 km/s
125t acceleration: 18,95 m/s
125t Delta-v: 5,252 km/s
250t acceleration: 16,29 m/s
250t Delta-v: 3,902 km/s

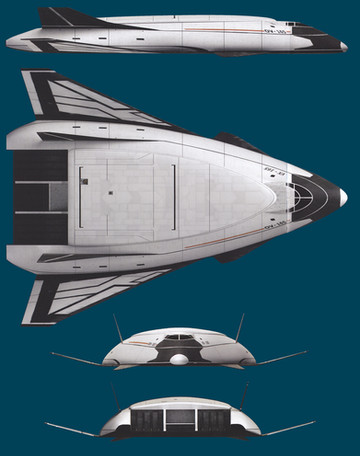

Ramus, a Venerian universal lander, capable of atmospheric flight, landing on runways, as well as unassisted vertical landing and liftoff. This lander is usually carried by larger ships to enable cargo deliveries to any location. Its central cargo hold tends to carry mission specific extensions, commonly a booster for lifting of larger celestial bodies or a crew module for carrying passengers. The crew module in particular is popular on longer voyages, since it extends the living area of its mother ship. When doing cargo deliveries, once on location, the extension carried is extracted and replaced with cargo, then reinserted once the delivery is completed.
Additional use it provides come from radiators embedded inside its wings, which are capable of quickly dispersing waste heat this craft might accumulate, but can also be used to extend heat management capacities of its mother ship, something very useful for carrying sensitive cargo which requires specific temperatures. Another use for it is on science ships for maintaining temperature on their experiments.
