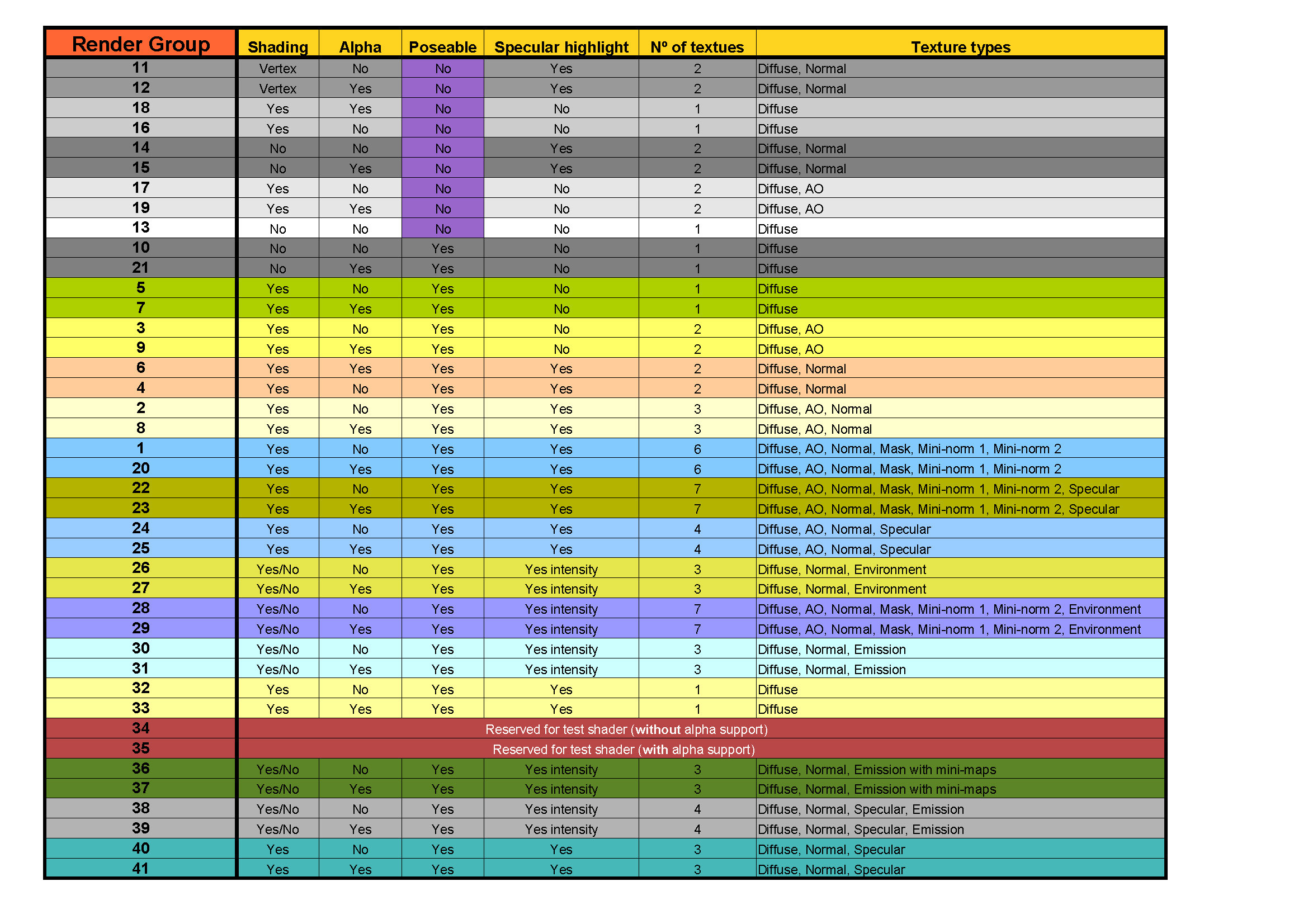

Here is a list I did of XNALara/XPS Render Groups. Original list here xnalara.home-forum.com/t225-le… (Thanks XNAaraL )Basically I organized them in groups of alpha and no alpha, according to the amount of textures used in each RG. And I've put together and highlighted the no poseable ones.
I thought someone might find it useful
Things you might want to know:
XNALara/XPS community uses some different names, so here I list the meaning of the ones I've used:
AO (Ambient Occlusion) = Lightmap
Normal (Tangent Space Normals) = Bump
