pnn32 β Ancient High-End Graphics Card
#192 #gpu #graphics
Published: 2014-04-28 15:50:31 +0000 UTC; Views: 4289; Favourites: 52; Downloads: 124
Redirect to original
Description

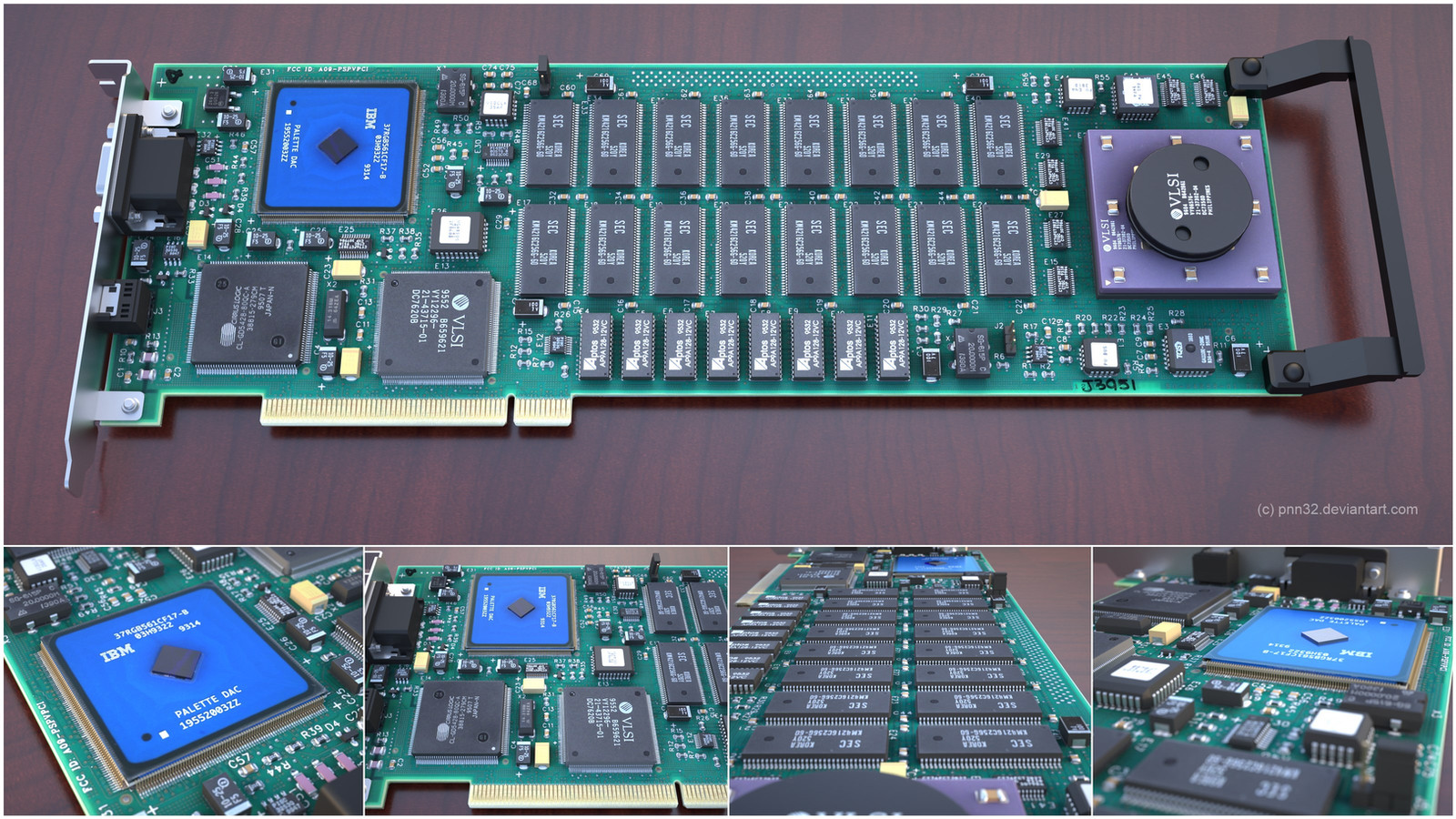

3D model of ancient high-end graphics card, based on chips by IBM(r) and VLSI Technology(r)ΒFull-length, full-height PCI card with 16Mb (32 chips total on both sides) of video RAM and handle for carrying retainer bracket.
Designed by Dynamic Pictures, Inc.(r) in 1995 year.
High-resolution image from vgamuseum.ru/gpu/dynamic-pictu⦠was used as reference and texture for PCB (after some editing).
All trademarks and other copyrighted elements like logos etc. are the property of their respective owners.
--
Some tech details about tools:
Paint.NET 3.5.10: textures editing, minimal postwork on some pixels and final image composing
Blender 2.69: modeling (using group instancing and dynamic linking from external .blend files for components) and UV mapping. Overall poly count is about 260k.
Octane Render 1.52: materials setup and rendering (pmc mode with maxdepth=8 at 8000spp)
