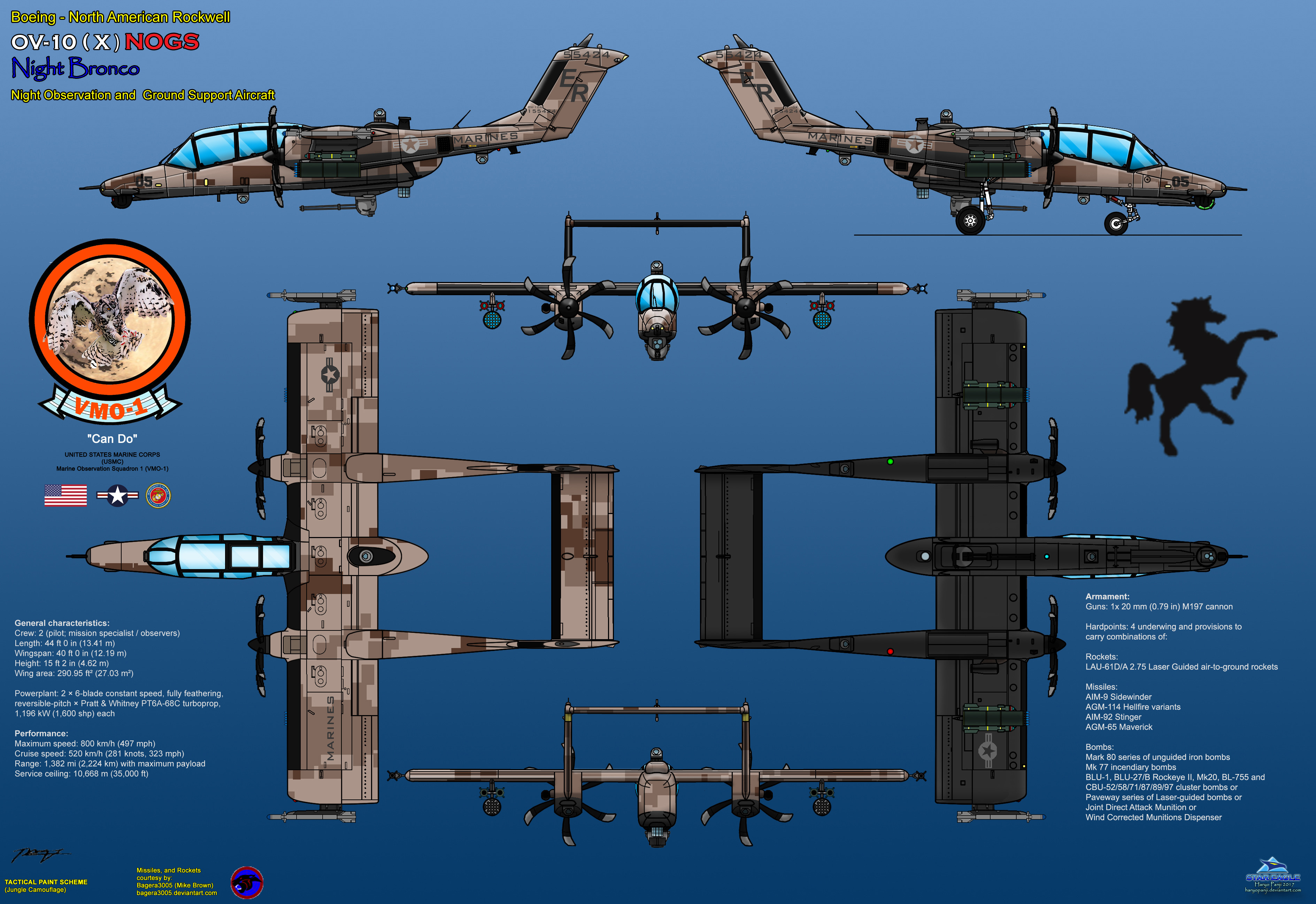

Concept technical 6 view profile drawing of the Multi-role Night Operation and Ground Support version from North American Rockwell OV-10 Bronco.

Based on OV-10X + (Ground) Strike Bronco

Design
Together with Boeing, plans internally to build a modernized, improved version of the Bronco, called the OV-10X, while the aircraft would maintain much of its 1960s-vintage rugged external design, the 21st century modernizations would include a computerized glass cockpit, intelligence sensors and smart-bomb-dropping capabilities. Those major upgrades should be capable of finding, tracking, and attacking targets either on its own or in support of ground forces.

As a counter-insurgency aircraft, featuring new Hartzell six-bladed props and an off-the-shelf sensor suite. Bigger engine outputs with infrared-suppressive exhaust stacks (which mix the exhaust with colder air to reduce the aircraft's heat signature). Equipped with square chaff dispensers midway down the booms and with new wiring and strengthened wings. All cockpit display instrumentation's was changed to digital glass cockpit.

Upgrades
The FLIR turret gets upgraded to the AN/AAQ-39. To push the envelope the AN/AAQ-37 and the laser turret heads for the ATIRCM system mounted on the booms outboard and aft of the wheel wells.
A package like that would make this an absolute night sniper but give it super observation and counter measures.

Upgraded material of the landing gears makes it capable of operating from semi-prepared runways such as grass or dirt surfaces.
Defensive package: defensive measures, including a Missile Approach Warning System (MAWS), a Radar warning receiver (RWR), and chaff and flare dispensers. More radically, C-MUSIC Laser Beam Anti-missile defense system in smaller version defense-update.com/wp-content/…

Armored cockpit and engines.

Long loiter time. The aircraft able to fly more then 5 hour sorties (with 30 minute fuel reserves)

Data link capability.
Intelligence, Surveillance and Reconnaissance (ISR) capabilities. The aircraft features laser track and designate targeting system, as well as track targets using electro-optical and infrared video/still images.

Weaponry. The aircraft have the capability of aerial gunnery, either with an integrated or pylon mounted gun.
Aerobatic capabilities, capable of maneuvers such as the Immelmann turn , Cuban eight , and Split S .

Specification (OV-10X+):

Crew: 2 (pilot; mission specialist / observers)

Length: 44 ft 0 in (13.41 m)
Wingspan: 40 ft 0 in (12.19 m)
Height: 15 ft 2 in (4.62 m)
Wing area: 290.95 ft² (27.03 m²)

Powerplant:
2 × 6-blade constant speed, fully feathering, reversible-pitch Hybrid turboprop engines, 1,196 kW (1,600 shp) each

Performance:
Maximum speed: 800 km/h (497 mph)
Cruise speed: 520 km/h (281 knots, 323 mph)
Range: 1,382 mi (2,224 km) with maximum payload
Service ceiling: 10,668 m (35,000 ft)

Armament:
Guns: 1x 20 mm (0.79 in) M197 gun and A/A492-7 turret.

Hardpoints:
2 under wing, 2 on Wing tips, and provisions to carry combinations of:

Rockets:
2.75" LAU-61D/A air-to-ground Laser Guided rockets

Missiles:
AIM-9 Sidewinder
AGM-114 Hellfire variants
AIM-92 Stinger
AGM-65 Maverick

Bombs:
Mark 80 series of unguided iron bombs
Mk 77 incendiary bombs BLU-1,
BLU-27/B Rockeye II, Mk20,
BL-755 and
CBU-52/58/71/87/89/97 cluster bombs or
Paveway series of Laser-guided bombs or
Joint Direct Attack Munition or
Wind Corrected Munitions Dispenser

Countermeasures:
AN/AAQ-39 ball and AN/AAQ-78 Distributed Aperture System (DAS) missile warning systems.
IRCMs and "Angel Wings" flares for protection against IR missiles.
ALG-144 and the laser turrets for the ATIRCM system on the outboard of each boom forward of the chaff boxes

Others:
Laser targeting system module.
Infra-red heat seeking HD cameras in rotating turret.
Upgraded fly-by-wire Control System.
Advanced On-Board Oxygen Generation (OBOGS) system.
Multi function Advanced Data Link (MADL) communication system.

Paint scheme: Experimental USMC Low Visibility "MARPAT Dessert Camouflage" Scheme pattern paint job.
Livery: USMC VMO-1
