Description
Finally, I figured out how to use MS Paint >< That program is older than I am, and it hasn't advanced at all

I wanted to make this a long time ago, but I kept screwing it up and starting all over again.

Anyway, back to the subject.

Before we start, I would like to point out that this tutorial is aimed toward ppl who have some basic experience with coding/scripting, or at least be familiar with the Game Maker Language (GML).

OK, now, when I was working on HOTD, one of the issues we had to work with was the random block generation. The block would pop in front of you after you have walked a random (but controlled) number of steps.

When it was finished we faced a small issue. The blocks would sometimes permanently block the path to the exit. The player could not clear the room.

I had to figure out a way around it so I came up with a simple solution.

I would create a 2D array to represent the level, marking the locations that are blocked, then walk one step at a time while marking the visited locations as blocked (so we don't go back from the same direction we came from).

So first you create a 2D array:
level_grid[level_width, level_height]

The level_width and level_height are in blocks/panels. These information are stored in the level room.

Now, the value of the level_grid array will be as follows:
0 = empty panel (we never came here before)
1 = current step (we will check our new movement from here)
2 = next step (we can move in this direction)
3 = blocked/already visited panel (to keep track of what panels are dead ends)

You create the level_grid array and you initialize all its values to 0 (empty panels).

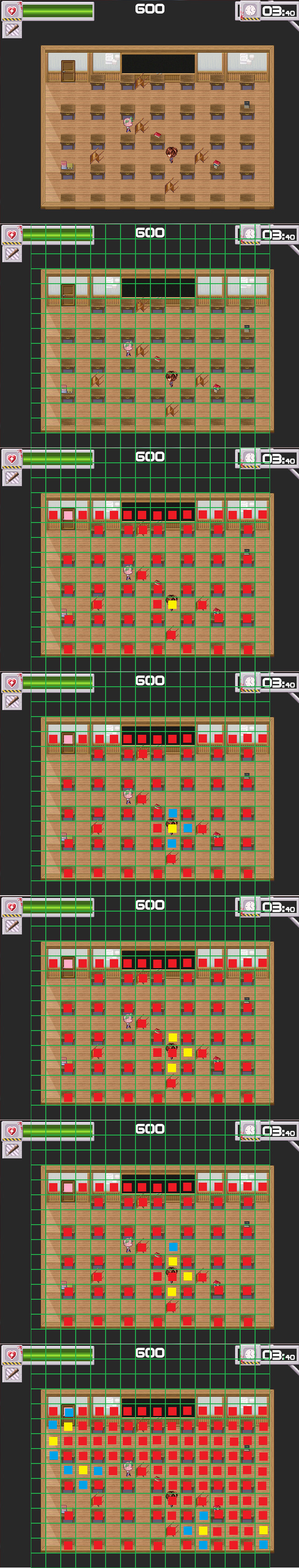

Now I'll use the image I posted to explain the rest of the process:

Screen shot #1: You see a screen shot of one of our levels. You see the player, the level, some random generated blocks (the chairs) and the exit at the top left corner.

Screen shot #2: This is how the game looks at the level. Everything is organized in a grid. This represent the level_grid array. When the level starts, it fills all the panels with 0 (empty). Here it is represented by an empty panel/square.

Screen shot #3: Now before we start checking, we fill in 3 things:
1 - The exit location (put it in variables exit_x and exit_y). The exit is marked with a purple square.
2 - The "first step" marked as a current step ( = 1 ). Its where we will test if we can move in either 4 directions. Marked with a yellow square.
3 - Blocked panels ( = 3 ). Marked with a red square. The locations of the blocks data are in the room data (you'll have to fill it yourself). You will also see that there is a red block in an empty space in front of the player. That's the location of the new block that we want to test against.

Now that we have our level_grid filled up, we can start checking to see if we can reach the exit. We will put the process in a loop. The loop does the following:

1- We go panel by panel till we find one with the value 1 (current step). We save its location in variables current_x and current_y (the values are in blocks).

2- Now we check all 4 directions by adding or subtracting 1 from its location:
North block: current_x, current_y – 1
East block: current_x + 1, current_y
South block: current_x, current_y + 1
West block: current_x - 1, current_y

You check each directions, and if its empty ( = 0 ) we replace it with a next step value ( = 2 )

See screen shot #4. The next step blocks are marked with a blue a square.

We do this for every other "current step" block.

3 – Now that we went through all the blocks, we setup the level_grid for the next loop. We take all the "current step" blocks and we change them into " blocked/already visited" ( = 3, red mark, because we already checked them), then we take all the "next step" blocks and change them to "current step" ( = 1, yellow mark, because we will check them in the next loop).

Check screen shot #5 to see how it looks now.

4- Now we check for the termination condition. This part checks if we still need to keep "stepping" (because we haven't found the exit yet), or if we can stop. We have 2 termination conditions:
Termination Condition #1: If any of the new "next step" blocks (blue mark) happen to reach the exit (purple mark), the new added block will not permanently block our path to the exit. We can spawn a block (a chair) and keep on going with the game till a new block is scheduled for spawning.
Termination Condition #2: If there is no more "current step" blocks (yellow marks) and all we have are red marks, then there is no possible way to the exit. So we cancel the chair spawning, reset a new random step for spawning a new chair, then we keep moving forward with the game.
Other Conditions: If neither Termination Condition #1 or #2 have been satisfied, then we didn't reach the exit, AND there are still empty blocks ( = 0 ) that we haven't checked yet. If this is the case, we go back to STEP 1, and start a new loop.

To see this in the image:
Screen shot #4: A "current step" block has been found ( = 1 ), we check all 4 directions and we find that only 3 are empty. We fill the empty blocks with "next step" block value ( = 2 )
Screen shot #5: We turn our "current step" block (yellow) into a "blocked/visited" block (red), and we turn the our "next step" block (blue) into "current step" block (yellow).
Screen shot #6: We repeat the loop again. We find that 2 of our yellow blocks can't make any blue blocks because they are no empty blocks in any direction. The 3rd yellow block (the north one) managed to find one empty block above it, so it turned it to blue.
Screen shot #7: The screen shot shows you how the game kept looping till one of its blue marks finally reached the exit. This means the new chair will not permanently block our path to the exit.

That's it for the tutorial. I know it's very general and there is almost no code/script. I hope it's clear enough to build your own code.

If you have any questions (which I'm sure you have ) please feel free to ask

Hope this was useful.

Cheers
Farraj.
