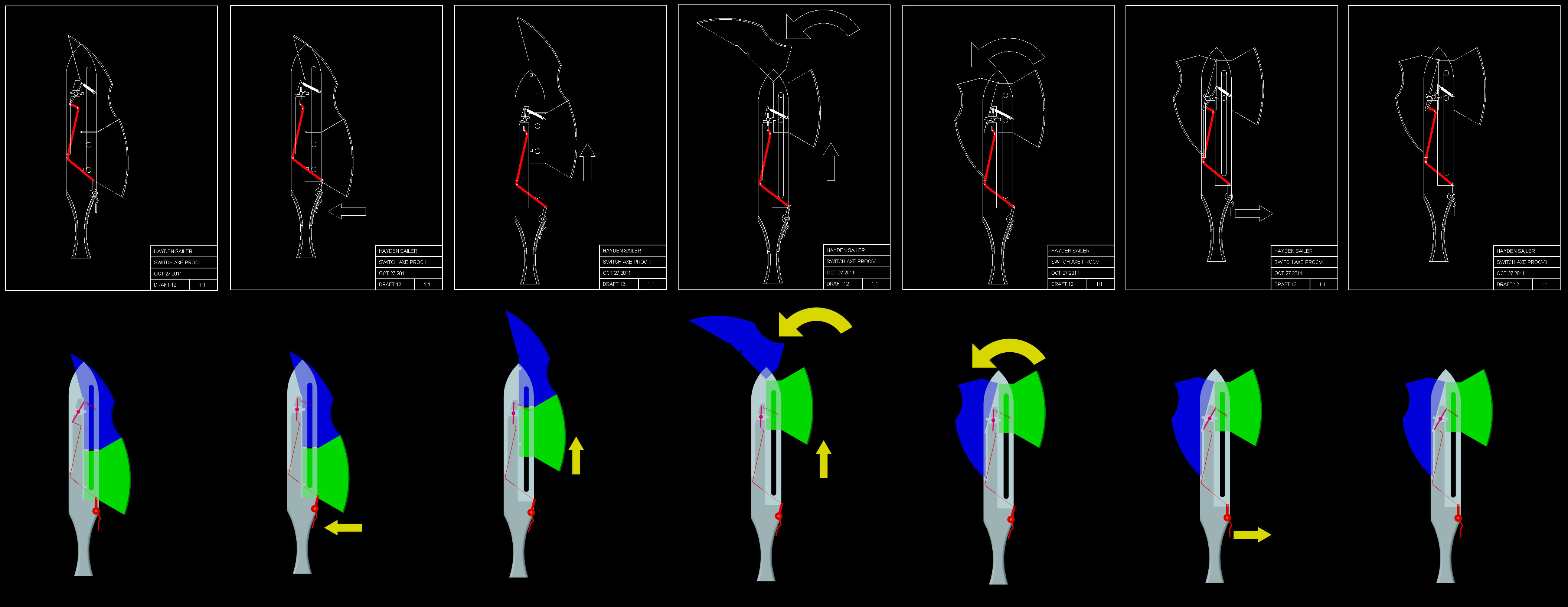

Much easier than my first modelsimply pull and hold trigger
angle the axe down so the blades slide to the top
flick your wrist to flip the sword around
and release the trigger
actually building it as i said in the comments of the related image to this- the trigger and red line will be encased in a pipe or built into the frame- they are drawn to stand out because they are important
most important is the pink axle at the top end of the switch axe -the round thing with to arms coming out of it in opposite directions, one of these arms is attached to the red line- the other attached to a spring
there are not as many complicated or moving parts in this model
however this pink axle is one part that is very complicated
this axle locks everything in place
in addition to the two big arms
there are two slightly visible smaller arms inside the frame- they're visible because i textured the frame as glass so you can see through it- these arms will be nails/screws- they will turn into the axe and sword blade- there are corresponding notches- in these notches a metal bracket should be placed- something like what is used on picture frames
being as how this is only a design i wouldn't recommend anyone trying to build it just yet
i have a bad habit of changing designs as i build them
so when i eventually get around to making this-
things might get changed- i'll deal with that later though
