SoCalDJ — Ultimate System Monitor
Published: 2010-10-14 20:53:21 +0000 UTC; Views: 36639; Favourites: 38; Downloads: 7987
Redirect to original
Description

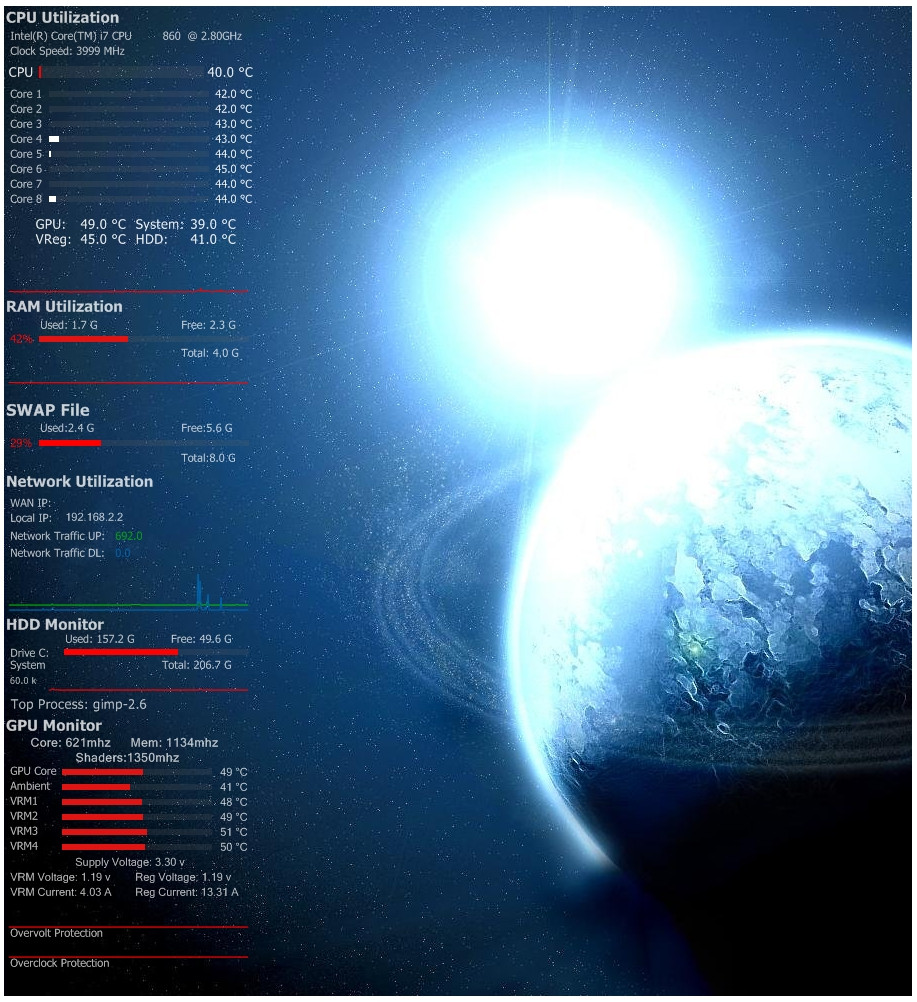

This is a modded version of the original ForceX System Monitor ([link] ) to be full transparent on your desktop and give all the information you could possibly need for overclocking and monitoring.This includes Rivatuner outputs, Speedfan outputs, and Performance Monitor outputs
In order for this to run properly you need to install the Rivatuner and Speedfan plugins included here and you need to enable background monitoring in Rivatuner.
Please read this post for a step by step process.
[link]
It includes:
8 CPU core use/temp monitors
Overall CPU use/Temp monitor
RAM Monitor
SWAP Monitor
Network Utilization
1 HDD Monitor
GPU Monitor this includes Rivatuner readouts:
GPU Core clocks/Mem clocks/Shader clocks
GPU Core temps/Ambient temps/VRM1-4 temps
Supply line voltage/VRM voltage/VRM current/Reg voltage/Reg current
OCP and OVP protection monitors
Related content
Comments: 22
would've been prefect, if it wasnt an all-in-one kinda thing. i only need the CPU utilization (everything above the first red line.)
👍: 0 ⏩: 0

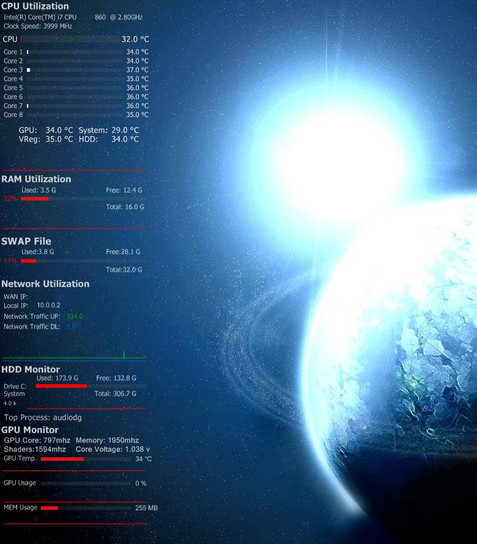

Here's the updated version of this skin that includes MSI Afterburner readouts instead of Rivatuner since the latest version of drivers from Nvidia broke it
👍: 0 ⏩: 0
How do i set my rivatuner to show hdd temps??
👍: 0 ⏩: 1
Umm you don't. The HDD temps are pulled from speedfan.
👍: 0 ⏩: 0
add a uptime and uptime record. it will be perfect enough to remove 2 side bar gadgets for me.
👍: 0 ⏩: 1
I'll look into it, never had a use for up time for me but I'll see what I can do. Is the systems up time pulled from the windows system monitor I assume?
👍: 0 ⏩: 1
maybe. for i do not know.
👍: 0 ⏩: 0
If i want to show only GPU,HDD,CPU1-8,SYSTEM temps what i have to do??
I have speedfan already in my machine, check this shot: [link]
Which is gpu,hdd,cpu1-8,system temps in that shot?? Sorry but i'm a noob....please help!
👍: 0 ⏩: 1
You have to go in and edit the .ini to no longer include the specific sections. But you'll also have to change the placement of each module in the .ini as well.
👍: 0 ⏩: 0
No it shouldn't. This is just using other programs framework to report information.
If you're asking if Rivatuner will interfere with it, I would say most likely no, I run EVGA Precision at times with Rivatuner with no issues. Afterburner, and Precision are both created by the same programmer who built Rivatuner (In fact they share a lot of the same code).
👍: 0 ⏩: 0
Do you know if this would interfere with Afterburner?
👍: 0 ⏩: 0
Cant get it to work when starting gives me errors about plugins not found in directory. But they are all there...
👍: 0 ⏩: 2
Oh wait. It could be the Rivatuner plugins too. What version of Rivatuner is running? I've got both of the voltage mods running, VT1103 and VT1165. You need to enable these to enable some of the monitors.
In Rivatuner, open Hardware Monitoring -> Click setup in the bottom right hand corner, click setup -> click plugins -> You should have check marks next to VT1103, VT1165, VidMem, and ADT7473.
👍: 0 ⏩: 1
You also need to make sure that the data sources I'm monitoring are all checked to be monitored too,Core Clock, Memory Clock, Core Temperature, Ambient Temperature, sensor supply voltage, VRM output voltage, VRM output current, VRM Phase 1 temperature, VRM Phase 2 temperature, VRM Phase 3 temperature, VRM Phase 4 temperature, OVP Status, OCP status, Voltage regulator output, voltage regular current.
Check those too.
👍: 0 ⏩: 0
Double check to make sure you have them installed in the right directory, C:\Program Files\Rainmeter\Plugins. I'm not sure what could be causing that. Do other skins have the same issues when they try to access the plugins?
👍: 0 ⏩: 0
nice one, really through
although i didnt like the red color but one change it to suite his tastes
👍: 0 ⏩: 0
Gotcha. I can add it in when I get the chance but that's one thing I never really use so I didn't add it in.
👍: 0 ⏩: 0
the only thing missing that I can see is total upload and download for the network
👍: 0 ⏩: 0
