hauke3000 — 3 3/4 inch 3D printable action figure joint setup
#actionfigure #articulation #3dprinting
Published: 2017-06-13 13:01:28 +0000 UTC; Views: 7124; Favourites: 20; Downloads: 0
Redirect to original
Description

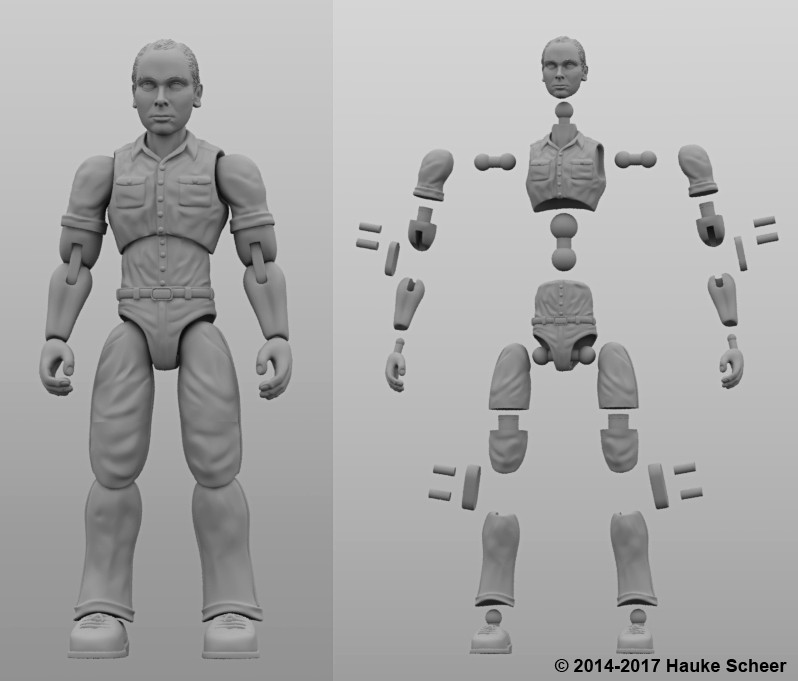

Here is the setup for the joints of my recent figure.The figure was modeled in Modo. The plug holes for the joints were added via Netfabb later.
Related content
Comments: 6
👍: 0 ⏩: 1
👍: 0 ⏩: 1
I take it this becomes a snap together figure?
How do you attach the parts for the elbow and knee joints?
👍: 0 ⏩: 1
Yes the ball joints just plug in the figure. The elbows and knees use pins. You can see the figure in action here:
