RNDmodelshop — Octahedron and Cube 'Dual' (W-43)
Published: 2010-05-11 01:35:45 +0000 UTC; Views: 1994; Favourites: 19; Downloads: 24
Redirect to original
Description

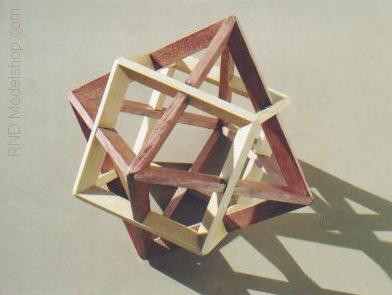

2 polyhedron in one!This is a 'dual' of both an octahedron (stained dark) and a cube (clear coated). They are duals mathematically, because they relate to each other 'one to one' in the number of edges (12 each), and they relate as compliments to the number of planes to number of vertices (8 each).
This is one of the more difficult pieces to make, because each has 2 different lengths. In fact their exact relation to each other is the square root of 2, which is also the relationship of either of the 2 shorter sides of a 45' triangle to its hypotenuse. Each of the wood pieces is cut just halfway thru so they snug fit like Lincoln Logs. The 3 way compound miters on the cube are different than the 4 way compound miters on the octahedron.
...ol' Pythagoras told me all that in exchange for a cup of coffee and a prune danish once when he was kinda down on his luck...
