DragonLord720 β Blender node setup update
#blendercycles
Published: 2015-07-03 09:44:04 +0000 UTC; Views: 12710; Favourites: 158; Downloads: 498
Redirect to original
Description

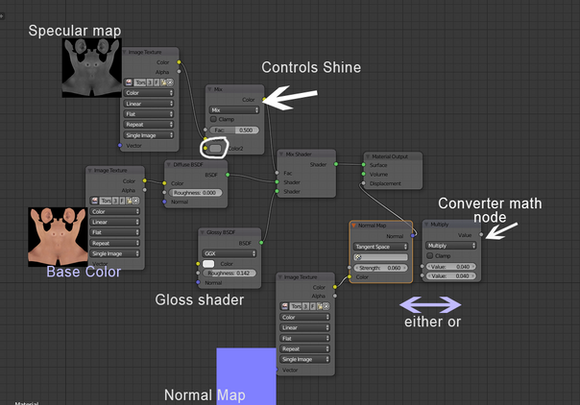

thought i take a screen shot of my node setup for clothsRelated content
Comments: 55
i dont even use this anymore
π: 0 β©: 1
Oh okay, so you are using another 3D program now?
π: 0 β©: 1
not really,Β www.youtube.com/watch?v=4H5W6Cβ¦
π: 0 β©: 1
This, and the video on youtube, was crucially helpful for me just now. Thanks!
π: 0 β©: 0
What idiot will connect a normal map with displacement?
π: 0 β©: 1
where are your tutorials?
π: 0 β©: 0
Heya..!!
π: 0 β©: 1
I don't know how I only work with cycles
π: 0 β©: 1
Yeah.. I kinda figured that out.. My problem now is noise while rendering... Thanks for the node setup...
π: 0 β©: 0
help me blender to xna (i don't have texture)
π: 0 β©: 1
do you use mini normal maps?
π: 0 β©: 1
I use same setup as you but i just change the node normal map toΒ math(multiply) strenght 0.055
π: 0 β©: 2
can you show me the node?
π: 0 β©: 1
Ok, i'll do soon. i just rendering atm.
and the scene i rendered haven't this nodes.
π: 0 β©: 1
I love your setup, really! that's givea good cloth effect but try to use math>Multiply for theΒ glossy shader with 0.2 value, that give a balance b/w, if you don't it will to shiny.
π: 0 β©: 0
hypster83.deviantart.com/art/Nβ¦
π: 0 β©: 0
no spec maps are black and white
π: 0 β©: 1
But some model is no including the spec map.
π: 0 β©: 1
you have to make them yourself thenΒ www.youtube.com/watch?v=-6cay0β¦
π: 0 β©: 1
thank you very muchοΌοΌοΌ
π: 0 β©: 0
You could improve the material by rearranging some of the nodes:
- The Fac of the Mix Shader should be a fresnel node (or Layer Weight, I prefer that one over fresnel), to control how the glossy changes over the surface depending on the viewing angle.
- The specular map, instead of being connected to the fac of the MixShader, should be connected on the roughness of the Glossy bsdf.
- The glossy color could be the same diffuse map, slightly lighter and desaturated.
- If you have a normal map, it should be connected to the normal inputs of both the diffuse and the glossy bsdf.
- On the other hand, if you have a displacement map (greyscale), then that should be connected to the displacement input using a math node set to multiply to control the strenght of the displacement.
Here's a screenshot of a base material with the nodes arranged this way:
drive.google.com/file/d/0B7ECfβ¦
I hope that helps
π: 0 β©: 0
Look great on cloth effect and reflect!!
Thanks!!
π: 0 β©: 1
What about making the hair alphas transparent?
This is still great though, thnks
π: 0 β©: 1
ill do one in the morning for hair
π: 0 β©: 1
you dont have to use them but there pretty easy to make
π: 0 β©: 0
The Normal map shouldn't be put in the Displacement socket, but in the Normal socket of every BSDF shader. The Displacement (grey socket) uses height maps, greyscale images, to create a simple bump effect, while the Normal map (purple socket) uses the RGB as XYZ to give information about the orientation, the Normal vector (hence the name), of every pixel in a face/plane. You still can use a normal map as a displacement, but it will not work and look as it's meant to.
π: 0 β©: 1
do u make renders?
π: 0 β©: 1
I rarely make 'final' renders, but I do practice rendering.
I made this image to better illustrate the difference I mentioned: sta.sh/0147is88wj88
π: 0 β©: 0
that help alot people understand the maps or uv layers thanks DragonLord ^^
π: 0 β©: 1
i try help when i can
π: 0 β©: 1
will this helps out alot the people who want get into meshmod something like this helps out greatlyΒ
π: 0 β©: 1
