A basic tutorial on how to set up MME MirrorWF_v002Notes:
Vocaloid model - Meiko EvoX by Nakao
MME - MirrorWF_v002
Download links?
Related content
Comments: 270
Doh, I didn't see the "X" at the end of your original comment.
The "X" version of this effect uses a special "X" shaped shadow at the feet of the performing model. I've used this version on my CORE stage set if you want to check it out.
👍: 0 ⏩: 1
Huh. I guess the only one of the two I might want is AL, because I must already have X then. Thanks!
👍: 0 ⏩: 0
For some reason, this happens no matter if I load the models in before or after the working floor and change the draw order...
sta.sh/01s4msebnbsz
👍: 0 ⏩: 1
Hmmm... the skydome reflected fine... does this happen with other models or just this one?
👍: 0 ⏩: 1
it happens with all the models, and oddly enough, this only happens when I use the mirror floor included with the learnMMD stage...
👍: 0 ⏩: 1
Hmmm... that's rather odd. Oh well, you can use the regular mirror floors with the LearnMMD stage instead; the only difference with the one included with that stage is the shape of the floor. Alternatively, change the code files included with LearnMMD stage with a set of files from a working copy of the working floor, just overwrite the existing files. That might fix the problem. I used an earlier version of the code with the LearnMMD floor and that might be the issue.
👍: 0 ⏩: 1
i need help with the Tr i change it but it keeps going back to 1.00 I don't know what to do
👍: 0 ⏩: 1
I did but it keep going back to 1.00
👍: 0 ⏩: 1
The MMD UI will only register legal entries. Try typing "0.75" (or whatever number) and then hit the register button. It should take the change. If it doesn't I have no idea what else can be done. Do you have any other problems with MMD registering changes?
Also, if you're using Windows10 to make sure you are allowing MMD to have the permissions it needs to function correctly.
👍: 0 ⏩: 1
I want to make a mirror, but I can't edit the coordinates. Can you help me?
Lg Naomi~
👍: 0 ⏩: 1
The mirror surface can be any flat shaped plane which can easily made in any 3D modeling application.
👍: 0 ⏩: 0
pp.vk.me/c630922/v630922464/34…
pp.vk.me/c630922/v630922464/34…
Working Floor создает два зеркальных отражения.
Правильное у ног и второе в стороне.
Подскажите, от чего может это быть и как с это убрать.
Вторая модель в проекте никаких багов не имеет и отражается корректно.
Working Floor creates two mirror reflection.
right at the feet, and the second in the side.
Prompt from what it can be and how to remove it
The second model in the project has no bugs and is reflected correctly
👍: 0 ⏩: 1
Looks like you have two instances of the effect model file loaded. Once on the ground plane and another on the vertical plane.
👍: 0 ⏩: 1
Как оказалось, это так WorkingFloorAL N2+C конфликтует с Edge Line моделей.
Уменьшение толщины Edge Line до 0 помогло решить эту проблему
As it turned out, so WorkingFloorAL N2+C conflict with the Edge Line models.
Reducing Edge Line thickness 0 to help solve this problem
👍: 0 ⏩: 0
So the models shouldn't reflect back as a white copy if you mess with the transparency right?
👍: 0 ⏩: 1

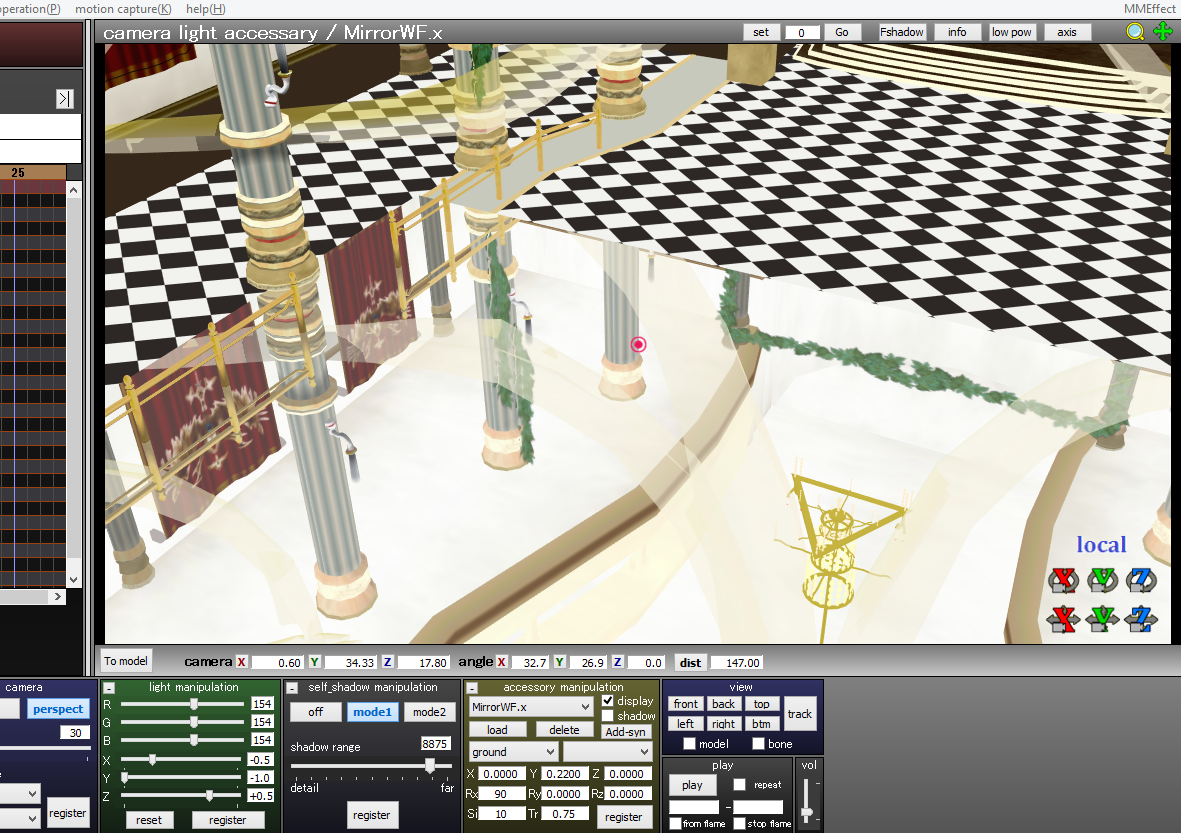

hello~ thank you for the tutorial.. I followed everything here but I still cant get it to work > A <.. Everything get's reflected yes but the floor itself is replaced by the mirror effect i.gyazo.com/b59198cff235f77fdc… can you tell me what I am doing wrong? This has been bugging me for days..
👍: 0 ⏩: 1
1. check your model/accessory draw order
2. check that you did in fact make the mirror floor translucent
If you're still stuck, please dig through my tutorials gallery. Your questions are specifically addressed in tutorials that I've done specifically addressing the issues raised in your post.
👍: 0 ⏩: 1
Right. I actually looked at your other tutorials and tried the workingfloor too--not the mirror one-- but it also gives me the same result, the floor is gone and is replace by the effect, you cant see any trace of the floor left, if you looked at my screenshot at the link in my previous comment you'll see what i mean. now about the draw order--i looked at your draw order tutorial too but I couldn't find anything that would help me there-- i can only see this gyazo.com/8457b46adc47a713e66e… and this gyazo.com/167909c6966996265df5… there's only one file in the 'accessory' so I couldn't understand how should I move the draw order. Can you please explain this more like how a beginner would understand?.... and for number 2. Do you mean the transparency of the MirrorWF.x? If you mean that then I had set it the same way in your tutorial--please look at my screenshot in the previous comment-- but if there's any other way to set the translucence of MirrorWF.x please tell me.
👍: 0 ⏩: 1
1. Set the over 'n' th number to '0'
2. Set the Tr value of the mirror effect x-file to a value less than '1' - say '0.5' to start
You should then be able to see the stage floor thru/under the mirror effect. For greater transparency decrease the Tr value of the mirror effect model file.
These figures should work for the configuration as shown in your screenshots.
Here's the general principle: models and effects with transparency needs always to be drawn last because of the way MMD resolved the way models are drawn.
If you have other questions, the draw order tutorials explains exactly how MMD calculates the model draw order and how the two draw order lists are inter-related.
👍: 0 ⏩: 1
Hello again~ I followed the step on your last comment and it finally worked!! It was the accessory draw order that I missed. I apologize for being troublesome but I'm really a beginner in this stuff. so thank you very much for being responsive to my questions and being patient > A <.. I think I somehow understand the draw orders now.. Thank you again and have a nice day /o/
here's the result by the way i.gyazo.com/fa3f5f720dc8c59469…
👍: 0 ⏩: 1
Yep, looks good and it's easy once you've got your head wrapped around the concepts.
👍: 0 ⏩: 0
Why does the model on the bottom turn white when I use it?
👍: 0 ⏩: 1
Because your draw order is incorrect. Find a tutorial on sorting MMD's draw order to resolve the issue.
👍: 0 ⏩: 0
its just gray and black when i use it ;-;
👍: 0 ⏩: 1
Sounds like your PC doesn't support the effect. Oh, BTW, you did install the MME interface, right?
👍: 0 ⏩: 1
aw shit I have 005 instead of 002 can I have a link to the 002 ver
👍: 0 ⏩: 0
Some characters does not seem to get relected any fixes?
Im on 9.26(latest)x64 with 0.37x64 MME few characters are not compatible i guess?
or am i doing it wrong maybe? i just drag the .x folder to the program seems to work with one of the MMD models i have but
i use the same method to others some does not seem to work pls help.
👍: 0 ⏩: 2
For certain x-file format models are not reflected, but I've not heard of nor seen PMD or PMX models not being reflected.
👍: 0 ⏩: 1
thanks for the answer, sorry it wasn't the problem with the models it was with the effects. I have seen some effects to be conflicting each other and i have found a way around it now. Thanks for the answer tho!
👍: 0 ⏩: 0
by the way im using the WF2_version002(is that the same thing? if it is Im retarded)
👍: 0 ⏩: 0
I have MMEffect_v037x64_English. My problem: I'ts not working in the MMD version MikuMikuDanceE_v739dot!!!!
I need help
👍: 0 ⏩: 1
Upgrade your MMD. Current version is 9.26.
👍: 0 ⏩: 0
Do you know how to make a subset not to reflect? For instance, there's a rug on the floor and i don't want to to reflect. If i put it higher than the base floor material,i'll get some alpha glitches
👍: 0 ⏩: 1
Yep, two solutions:
1: Put the rug higher so that it doesn't occupy the same 3D space as the hardwood floor.
2: Make a special mirror.
👍: 0 ⏩: 1
I did the 1st option before commenting, because of alpha channel on the rug material there are alpha channel errors, some wood parts don't reflect stuff(which is why I was struggling in the first place)
I guess I will try making a mirror, thank you
👍: 0 ⏩: 1
I was assuming that the rug was a separate part. Well there is a solution. Make the rug a separate part and put that above the mirrored part of the floor.
👍: 0 ⏩: 1
I guess I will have to get some editing done in that case, thanks
👍: 0 ⏩: 0
Without more info on the model that is not showing a reflection it is hard to determine what's going on. But if I was to hazard a guess, I would suspect that the material specifications of the model are at the root cause of the problem.
👍: 0 ⏩: 1
The models pmd,are reflected, but the pmx, no.
What should I do?
👍: 0 ⏩: 1
The effect reflects PMD and PMX models only but not Direct-X models (.x). I've never seen what your screenshot shows happen with this effect which is why I suspect the material specifications for the model may be the cause. But there's another possibility. Does the effect work on your PC with other PMX models?
👍: 0 ⏩: 1
That's not entirely true. Working Floor works with DirectX models as well, although it requires some manual setup.
When you load MirrowWF (or any other Working Floor accessories), an HLSL header file, MWF_Object.fxsub or WF_Object.fxsub, is automatically assigned to all PMX and PMD models. After loading MirrorWF, you can go into MMEffect -> Effect Mapping, and there'll be a new tab called MirrorWFRT. You can assign this .fxsub file to any items in the list (you have to display "All files" in the open dialog).
MaiteRitsuki , you should check if this file is assigned to your PMX model.
👍: 0 ⏩: 1
